- C Mount camera（Available to use it as a CS mount when removing 5mm closeup ring）
- Low Price USB 2.0 Camera
- Tripod hole (1 / 4-20 UNC) and 2 holes of M2 are prepared on the bottom of the camera. You can fix the camera tightly with using the holes.
- External trigger input terminal
- A strobe output terminal
- Although it is a CMOS sensor, it has a lineup of global shutter models.
- Frame drop prevention function included to prevent slowing down the frame rate due to compatibility with PC.
- Available dual launch of the same model
- Video / still image can be saved with Standard viewer software.
- USB2.0 connect to PC
- Various optional parts are provided！
- USB2.0 cable with screw (3m) is optional
＜Back of Camera＞
＜Bottom of Camera＞
- Model Number
- Supported Operating System
- WindowsXP, Vista,7, 8, 10
- Pixel Size（μm）
- Viewer software／sample SDK is included
- Trigger Software （Optional）
- Image Sensor
- 1/2 inch CMOS
- Number of Pixels
- 3.0 Megapixel
- Maximum Resolution
- Frame Rate
- 11fps （2048X1536）
- C Mount
The best point of USB camera
- 1.Light weight, small compact size
The USB2.0 camera is compact size
- 2.Full SDK
Support for C#、C++、VB.NET、
- 3. Outside trigger terminal
Outside trigger terminal、
Strobe output terminal
- 4.Viewer software standard features
Simple Viewer software is attached.
Available to save image and video by using this software.
●Saving format: BMP/JPEG for image or AVI for video
※About saving video
The maximum size is 4GB.
Video saving time
Other edge emphasis functions are attached.
The multiplex setup of the camera is possible, too.
- 5. Prevent frame dropping function
As preventing from unmatching between desktop and camera and adjusting the frequency of picture , the frame rate can be close to the ideal level.
※It is possible to prevent the display speed from being made by matching with PC.

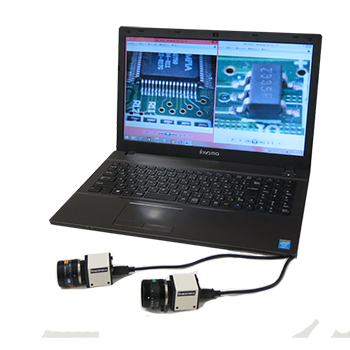

- 6. The multiplex start of the camera is possible！
If the double setup USB 2.0 camera is the DN3V series, a camera of the DN3 series, a double setup is possible by all combinations.
If you want to set up more than camera, please ask for technical support.
- 7. Lineup
USB 2.0 camera 0.3megapixel- 10 megapixel Color/Mono
USB 3.0 camera 0.3 megapixel - 10 megapixel Color/Mono
USB 3 Vision camera 0.3 megapixel - 10 megapixel Color/Mono
For each type, enclouse housing camera / board cameara and Color / Monochrome are provided.
Selectable according to your application
