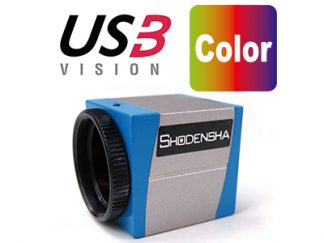

- Compliant with international standard USB 3 Vision for industrial machine vision system
- Supported GigE Vision, GenTL / GenIcam (International standard that IEEE 1394, Camera Link, GigEVision and other cameras are controlled with a common API)
- Switchable USB3 Vision camera／Directshow camera
- C Mount camera（Available to use it as a CS mount when removing 5mm closeup ring）
- External trigger input terminal
- A strobe output terminal
- Although it is a CMOS sensor, it has a lineup of global shutter models.
- Frame drop prevention function included to prevent slowing down the frame rate due to compatibility with PC.
- Available dual launch of the same model
- Code automatic generation software included
- Holes of M3 are prepared on the bottom of the camera.
- Adapter for tripod is optional
- USB3.0 cable with screw (2m) is optional
＜Back of Camera＞
＜Bottom of Camera＞
||High-speed data transfer
Reliable data transfer
Stable transfer of variable image size data
Stable recovery from communication error condition
||Ensure scalability to the future
Secure fixing to the housing
USB3 Vision camera fulfill the machine vision standards as above.
It is a unified standard of USB 3.0 interface for image processing that Formulated by the Automated Imaging Association (AIA Automated Imaging Association)
The best point of USB camera
- 1.Light weight, small compact size
The USB3 Vision camera is compact size
※The photograph is USB 2.0 camera.

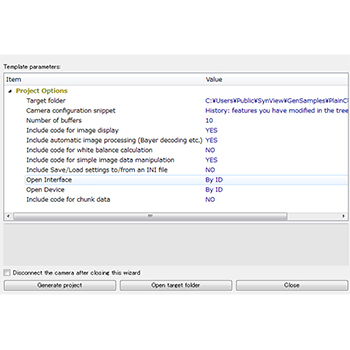

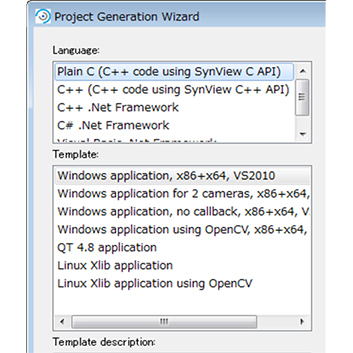

- 2.Code automatic generation software
With standard driver SDK, it is possible to
automatically generate code in which the
operation on the Viewer automatically
becomes the code.
Easy to use even beginners of image processing
and It also contributes to development
efficiency and shortened development time
for experienced users.
- 3.Two ways of fixed methods !
There is a hole of the M3
in four places in the
USB camera authentic sample.
Using this hole to fix camera.
- Available use the three-legs hole （1/4-20UNC）
by attaching the tripod adapter of the USB camera option.

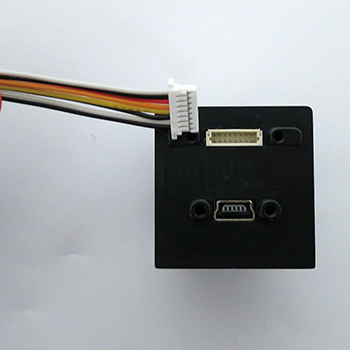

- 4. Outside trigger terminal
Outside trigger terminal,
Strobe output terminal
- 5.Multipul launch of camera！
USB 3 Vision cameras can be used simultaneously for any combination of DN3V series (USB3 Vision camera), DN3 series (USB3.0 camera), DN2 series (USB2.0 camera) cameras.
（※It depends on your software.）
Please contact our technical staff if you want to launch more than 2 cameras.
- 6.Full line up
USB 3 Vision camera 0.3 megapixel - 10 megapixel Color/Mono
USB 2.0 camera 0.3megapixel- 10 megapixel Color/Mono
USB 3.0 camera 0.3 megapixel - 10 megapixel Color/Mono
For each type, enclouse housing camera / board cameara and Color / Monochrome are provided.
Please choose product that suits your purpose.
- Model Number
- Supported Operating System
- WindowsXP, Vista,7, 8, 10
- Pixel Size（μm）
- Driver SDK included
- Image Sensor
- 1/1.8 inch CMOS
- Number of Pixels
- 2.0 Megapixel
- Maximum Resolution
- 1600x1200 UXGA
- Frame Rate
- 47fps （1600x1200）
A powerful measuring software MeasurePRO
A measuring software developed by our company.
Able to display multiple crosslines, grids, saved thumbnails and comments. Can export the data to Excel.
[Distance between 2 points]
[3 Points Angle]
[4 Points Angle]
[Distance between 2 circles]
・Export to excel
・Show multiple crosslines
・X, Y axis scales
・Show grid lines
・Display both saved image and live image on separate screens
Measuring software with focus stacking function
Standard accessories are two glass scales for calibration (GS - 0.2, GS - 0.5).
Measure easily on the screen.
The powerful MeasurePRO and the function-rich MeasurePRO-Ex measurement software comparison
・Please refer to the table below for the availability of the functions you need
|Measure distance between 2 points
|Export to excel
|Adjust screen magnification
|Display X, Y axis scales
|Supports Windows XP、Vista、7、8 and 10 （32bit・64bit）
