High Power USB microscope NSH130CS-R

The resolution of the affordable high power microscope has been greatly improved!

●It now has smaller than conventional lenses with improved resolution!

●The range of magnification is larger than before.

●The objective lens is replaceable. (optional)

●The product is ideal for observing highly reflective planes (polished metal, plating, silicon wafers, fiber end-faces, etc.)! Coaxial lighting type.

●The product is pre-installed with a lot of software for measurement and image connection.

●Customer software development is also available.



Product Inquiry phone028-3911-2006

Functions of the pre-installed standard measurement software:

  • Save still images (JPEG / BMP formats)
  • Measure the distance between two points
  • Pause (Freeze)
  • Save / read calibration data during measurement
  • Fit-in, digital zoom
  • Supported operating systems: Windows 8 or later
  • Saving / reading calibration data during measurement
    ※Calibration glass scale is optional and sold separately.



Main features

・USB 3.0 connection



・Total magnification 250x-1200x
※You can change the objective lens and reduce the magnification. Click here for optional objective lenses



・Coaxial light with dimming function (1W)



Features

It is smaller and lighter than conventional lenses, and has higher resolution!

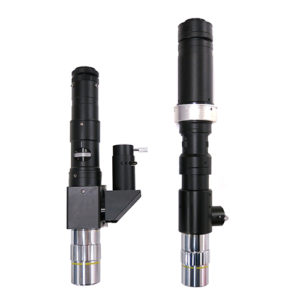

New lens (left) and conventional lens (right)
It is much smaller than conventional lenses!
Furthermore, the resolution is also improved!

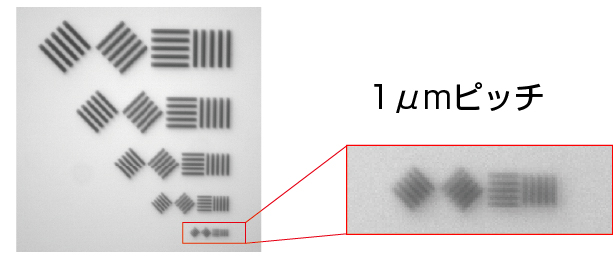

Conventional lens

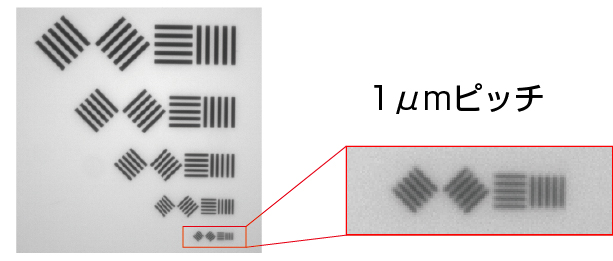

New lens

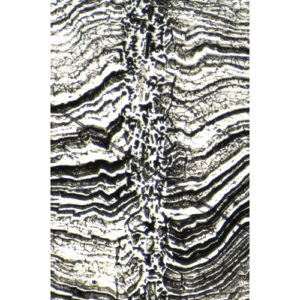

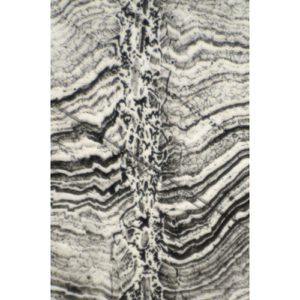

Aperture function added! You can enhance edges of observation objects.

Magnification over 1000x

Long range type
Working distance: 35mm

Usage Example

Specification

General Specification

Model Number
NSH130CS-R
Magnification
250x - 1200x 　※Magnification value is calculated and converted to apply to 17-inch monitors.
Field-of-view
1.55mmx1.2mm(250x)、 0.24mmx0.18mm(1200x)
Supported Operating System
Windows 8 or later (64bit)
CPU
Intel core i3 or above
Memory
4GB or more

Camera

Image Sensor
1/2”CCD
Number of Pixels
1.3MP
Resolution
1280×1024
Frame Rate
1280×1024（90fps）※Actual frame rate varies depending on the performance of the computer and the settings.
Connection
USB3.0
Shutter
Global shutter

Lens

Working distance
35mm constant

Accessory

1.3 megapixel USB 3.0 camera
Coaxial light (1W)
Zoom lens
10x objective lens
Attached XY table specifications
・ Stage size 155 x 180 mm
・ Range of movement 75 x 55 mm
NSH-specialized stand with coarse and fine adjustment knobs

※What is coaxial lighting? Click here for a detailed explanation.



You can reduce magnification with optional objective lenses.



Optional objective lens 2x

QM Plan Apo L2 (2X)

Magnification: 40x – 240x
Optional objective lens 5x
QM Plan Apo HL (5X)


Magnification: 100x – 600x





Introduction of optional software

We have various optional software!

●We also offer a lot of optional software for measurement, focus stacking, automatic visual inspection, image connection, and graphite spheroidization rate measurement.
You can also use the commercially available application (* DirechShow compatible) that are currently in use.


Optional measurement software

High-performance image processing measurement software 　MFShip





●Measurement support (Edge automatic fit) function
●Pin-point digital zoom function
●Focus stacking function for easier use
GS-4SQ calibration tool also included
(with 4 sets of increments 20µm / 100µm / 500µm / 1mm)

【Measurement items】
● Distance between two points
● Distance between parallel lines
● Distance between horizontal parallel lines
● Distance between vertical parallel lines
● Vertical distance
● Distance between circle centers
● Point coordinates
● Angle from 3 points
● Angle from 4 points
● Diameter of a circle defined by 3 points
● Diameter of an approximate circle
● Rectangle
● Ellipse
● Approximate straight line
● An arc defined by 3 points, etc.		 【Useful functions】
・Edge automatic fit function
・Pinpoint digital zoom function
・Scale display示
・Focus stacking function
・Report creation
・Image connection (tiling) function



Comparison between standard Viewer software and high-performance image processing measurement software (MFShip)

・The main differences are summarized in the table. Please select based on required functions.

  Standard Viewer software
MFShip
Distance between two points ○ ○
Focus stacking × ○
Export to Excel × ○
Show thumbnail display of image data × ○
Change screen display magnification × ○
Show crosslines × 〇
Show layout grid × ○
Supported operating systems Up to Windows 10 Up to Windows 10





Optional image processing software


I can see scratches that I couldn’t see before! I can also pre-process images before measuring!
