This time, we will introduce the “Multiple frame operation” function.
Setting multiple inspection frames is a very tedious task.
The “multi-frame operation” function reduces the troublesome work.。
First, we introduce what you can do.
- One inspection frame can be divided arbitrarily.
- You can finely move or change the size of the set inspection frame.
- You can delete inspection frames at once.
- You can copy the inspection settings.
・Contents of the deviation correction box
・Displayed in the test result list
・Comparison with master image / detection by specified color
・Contents of the color judgment tolerance box
・Pixel detection rate OK/NG reference value box contents
・Contents of the “Master Image” tab
・Contents of “Specified color” tab
It is a tab where you can set ① to ③.
To divide the inspection frame, set the division target frame and the number of divisions, and click “Split execution”.

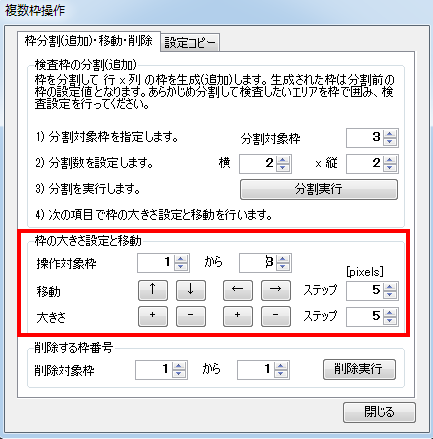

To set and move the size of the inspection frame, set the operation target frame,
the number of pixels for movement and size, and click ↓ ↑ or +-to adjust.
To delete the inspection frame, set the frame to be deleted and click “Delete”.
It becomes a tab where you can set ③.

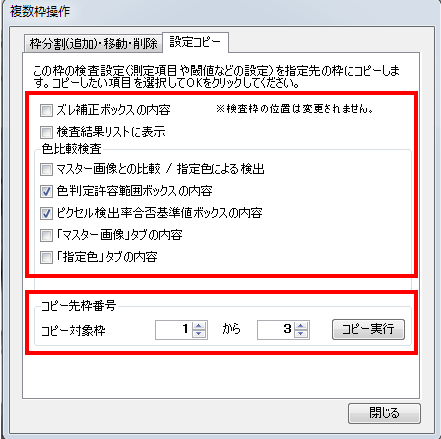

Specify the copy target frame (display the copy source inspection frame on the Easy Inspector screen)
Check the check box of the content to be copied and click “Copy”.
