Product identification/counting system
Non-calibration microscope
Inspect surface cracks. Alert when NG are detected
Inspection of the container’s upper surface Identification of defects: tears, punctures, dents, swellings, and depressions on the surface with a length of ≥10cm.

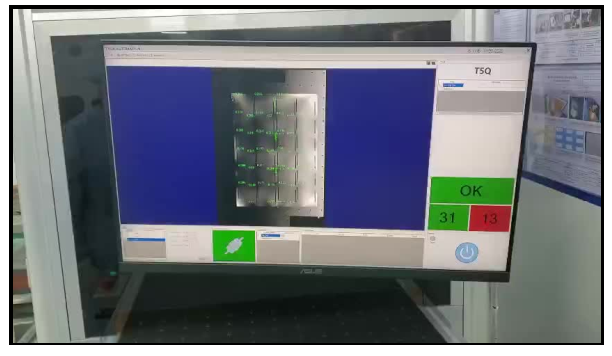

Automatic Counting and Position Verification System
Prone to reflection Solutions
Reading OCR at the specified positions on the product’s name card. Solutions
Measuring thickness of components is 0.2 mm. Check 2 components overlap. Check for missing components.Check for components in the wrong position.
Measuring thickness of SUS plate is 0.1 mm. Check 2 SUS plate overlap Check for missing SUS plate. Check for SUS plate in the wrong position, up side down.
Measuring various dimension: Diameter of holes, dimension between 2 center point of holes,… Measuring height of each hole. Measuring length of product.
Measuring various dimension: Diameter of holes, dimension between 2 center point of holes, width and length of tape,…
Measuring various dimension: Inner and outer diameter of shaft, overall dimension of key, diameter of thread hole and gap of clamp product,…
Cutting part of connector
Automatic measurement with the camera alone! Smart camera with built-in measurement software
For counting the number of non-defective products and having randomness,inspection for processing defects, and inspection for presence / absence
Super simple!High-accuracy automatic dimensional measurement with just a click!
Automatically checking any location with the autofocus camera and the automatic XY stageSemi-automatic system ideal for visual inspection
For shape matching inspection and color inspectionwhen there is only one type of non-defective product
We accept custom-made cylindrical surface inspection equipmentand software for inspection as a complete custom-made product.
