AI Detector Product Recognition

Characteristics

The AI software achieves an accuracy of up to 98%.
The AI does not confuse scratches or stains with defects.
Capable of inspecting at various positions.
Can capture 10~20 images of particularly deformed items or those with less than 50% accuracy for updates.

Inspection Requirements:

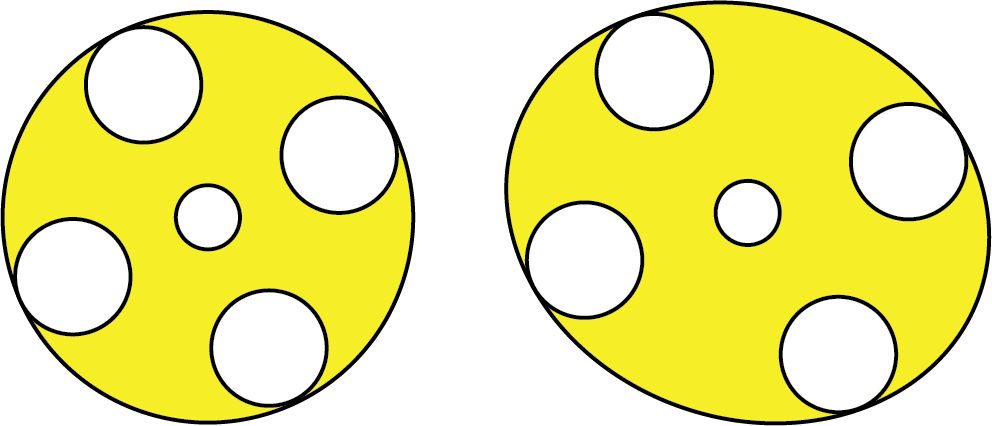

– Check for roundness

– Check for distortion and deformation

– Check quantity

Product Characteristics:
– Light refraction property: High.

Hardware

– High-specification desktop computer, minimum use of a GTX 1060 graphics card.

– Camera with a resolution of 1.3MP

– Fixed lens of 25mm

– LED light with 56 bulbs

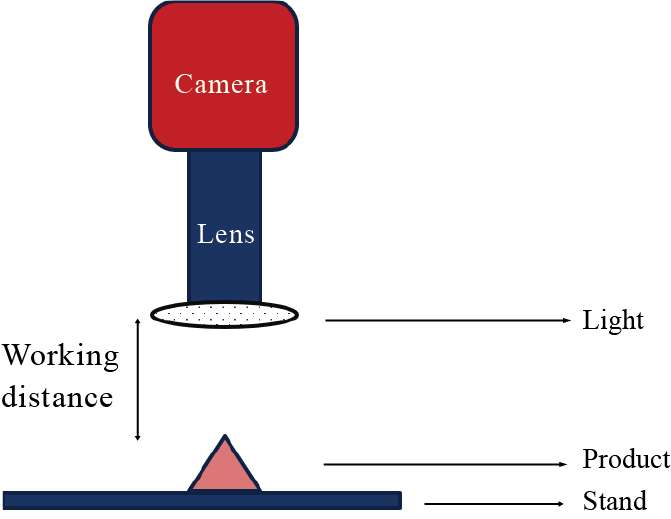

*Working distance (from the base to the lens): 22.3mm

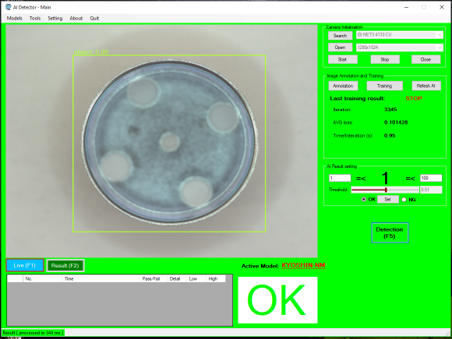

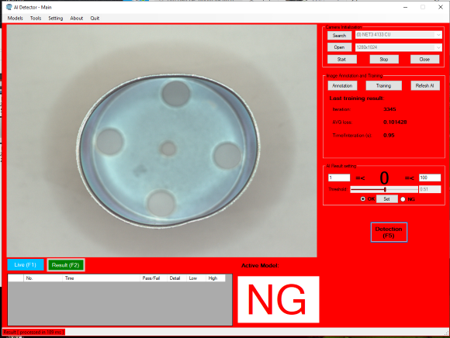

Test results

– The AI software achieves an accuracy of up to 98%.

– The AI does not confuse scratches or stains with defects.

– Capable of inspecting at various positions.

– Can capture 10~20 images of particularly deformed items or those with less than 50% accuracy for updates.

Pros

– 98% accuracy.

– Fast processing speed: Under 500ms per piece.

– User-friendly software accessible to any staff member.

– Results can be saved and retrieved at any time.

– Applicable to various models.

– Software can be upgraded as desired.

– Capable of inspecting while moving.

Applications

– External visual inspection of products.

Counting and identifying products.
