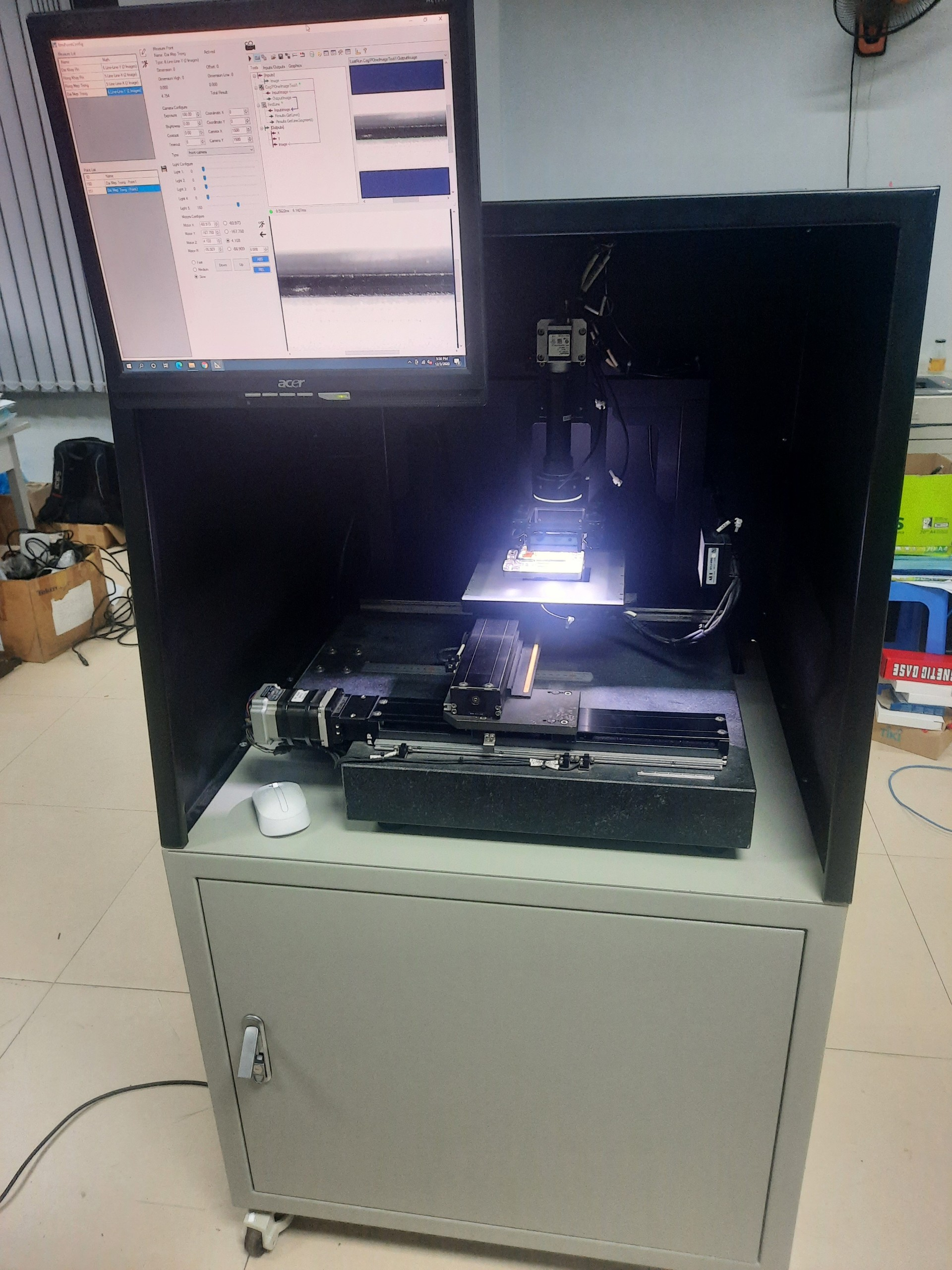

Welcome to our segment “Weekly Innovation with the Automatic Visual Inspection System”! This week, we are showcasing the “Motorcycle Component Measurement and Inspection System”. Although specifically named, this system is versatile enough to inspect and measure a variety of other products. This is more than just a tale of machinery; it’s a story of creating significant impact from the minutest details!
First, let’s discuss the inspection content. Our system not only captures images of the specimens but also measures their dimensions with high accuracy. Then, it compares these measurements with the technical specifications in the drawings. The system is also adept at handling objects with high light reflectivity.

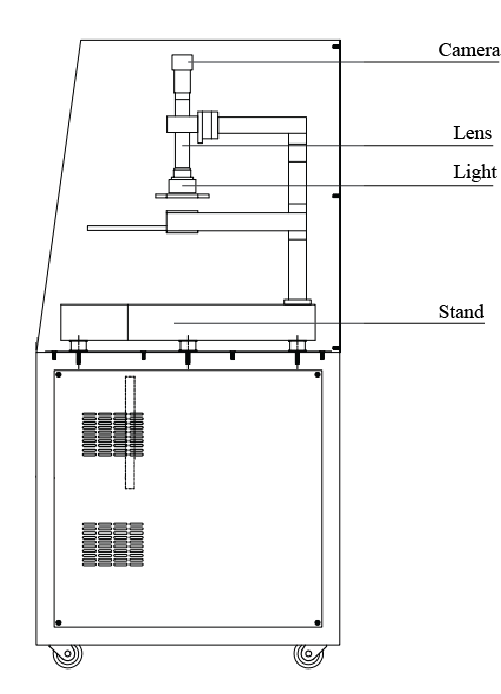

Here are the technical specifications and drawings of the system:
| Maximum Axis Dimensions (X×Y×Z) |
200x200x100 mm |
| Camera | 14MP CMOS Sensor Camera |
| Magnification | 0,35 ~ 3,5x |
| Field of View | 5 x 5 ~ 1,33 x 1 |
| External Interfaces | USB 2.0/USB 3.0, RS232/RS485 |
| Expected Measurement Machine Dimensions |
800x800x1500mm |
Now, let’s consider the system’s practical benefits. Firstly, it helps reduce labor costs and manual tasks, allowing staff to focus on more critical assignments.
Furthermore, the system significantly shortens product inspection times. Thanks to its ability to automatically import data from devices, you can drastically reduce the time needed for entering inspection results.
Lastly, the system minimizes dimensional errors in products. It collects data with high precision and provides instant feedback, helping to minimize size discrepancies during production. Turning “approximately right” into “exactly perfect”.
With such practical benefits, you’re not only enhancing efficiency and quality in manufacturing but also bolstering your company’s competitive edge. Stay tuned for our upcoming articles, where technology meets innovation!
 |
 |
