Greetings! Today, let us delve into our groundbreaking automatic inspection system, which analyzes your name cards at lightning speed. This is no ordinary inspection machine; it’s akin to a superhero, instantly identifying alphanumerical characters on name cards and rendering precise OK/NG judgements.
Inspection Requirements
Firstly, regarding dimensions, this system accommodates sizes ranging from a maximum of 400x250mm to a minimum of 180x100mm. Naturally, it impeccably supports the standard business card size of 110x70mm. Moreover, our inspection machine is adept at handling products with high reflective properties, almost as if gazing into a mirror.
Solution

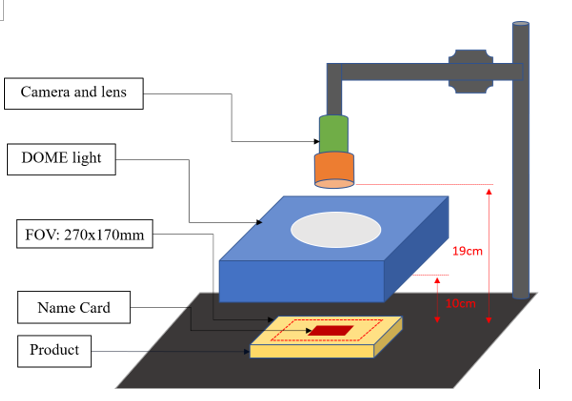

The system employs a 6Mpx camera, a 6mm lens, and DOME lighting to perform Optical Character Recognition (OCR) on business card surfaces. However, when placing the product on the conveyor, it’s imperative to ensure the card’s surface is flat. A slight effort here significantly enhances accuracy.

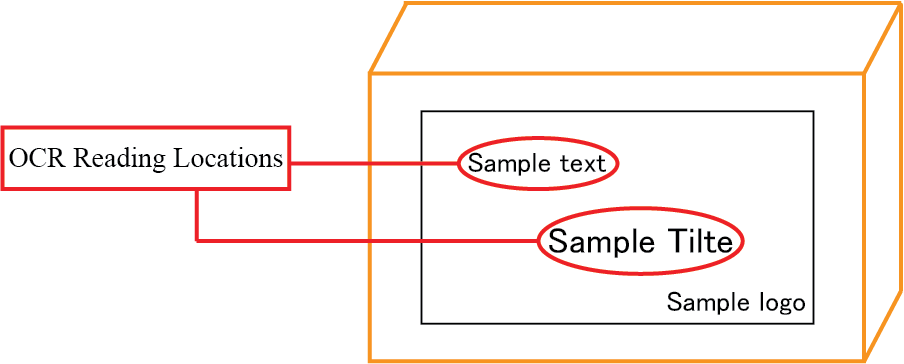

Functionality of OCR Software

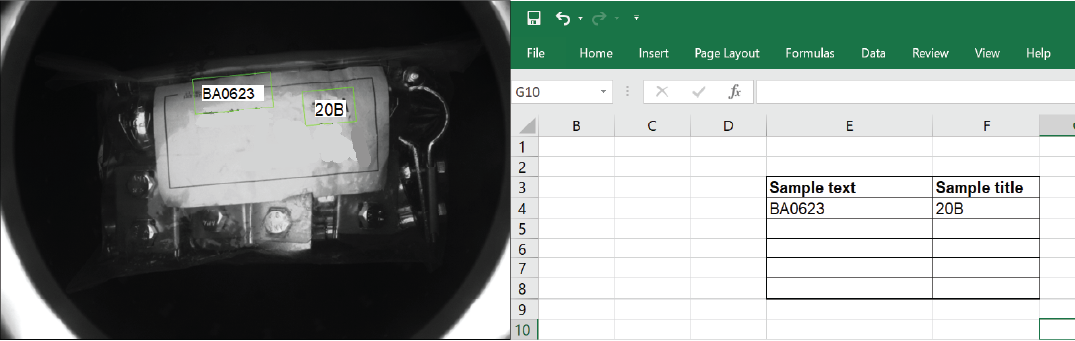

The OCR software swiftly recognizes text from images and compares it with Excel data to determine OK/NG status. Consequently, data is stored in an Excel file, as if it magically leaps onto the spreadsheet!
Inspection Results and Implementation Benefits
The inspection results are nothing short of remarkable. Flattening the surface of the business cards improves OCR accuracy, and the software’s processing time is a mere 300-500ms per piece. The implementation benefits are immeasurable: reduction in labor costs, minimized check times, and a stride towards ‘zero defects’.
This futuristic inspection system might transform your business in an instant. No longer is there a need to track each character with the naked eye. Our automatic visual inspection machine will read everything for you, provided the card’s angle is within 30 degrees. A minor adjustment in angle can yield magical results.
The march of technology is relentless, and our automatic visual inspection machine is constantly evolving. The system we introduced today is at the forefront of this innovation. The future of inspection lies with us. Let’s meet again in the next blog!
