INSPECTION CAMERA SYSTEM

INSPECTION CAMERA SYSTEMAF200-A-XY

Automatically checking any location with the autofocus camera and the automatic XY stage
Semi-automatic system ideal for visual inspection

  • Equipped with autofocusEquipped with autofocus
  • CustomizableCustomizable
  • Ideal for visual inspectionIdeal for visual inspection

Features of Inspection Camera System
AF200-A-XY

FEATURES

  • Fast autofocus to reduce inspection time
  • Since inspection points can be recorded on the XY stage, no additional action is needed during inspection!
  • Semi-automatic system where you only need to place an object and look at the screen to make a decision
  • Supports semi-customization, such as specified XY stage size and number of inspection points

Easy configuration with only 2 steps!

STEP1

Easy configuration with only 2 steps!

Configure the camera settings, such as brightness, color and magnification.

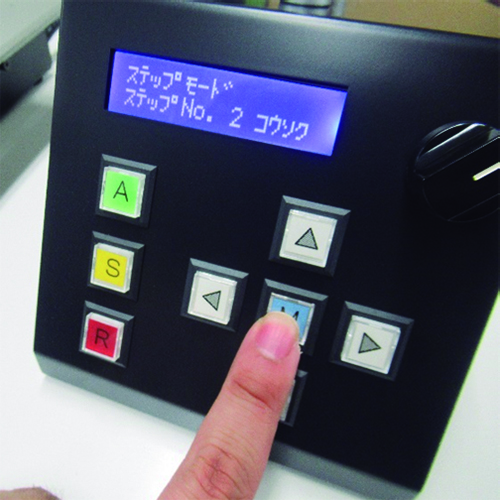

STEP2

Set the inspection point by moving the XY stage while looking at the camera screen.

Set the inspection point by moving the XY stage while looking at the camera screen.

All you have to do now is place the object according to the jig!

All you have to do now is place the object according to the jig!

Introductory video

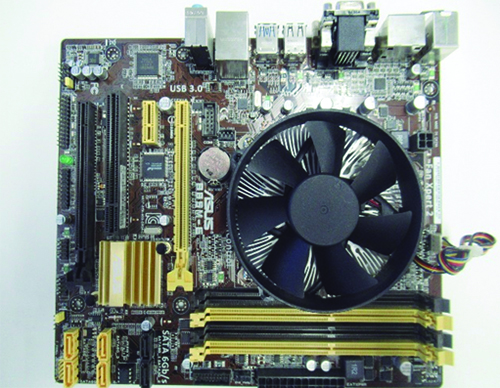

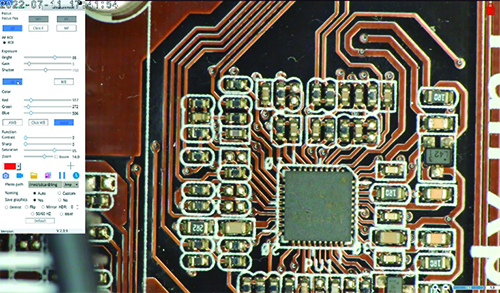

Inspection image

Sample collection

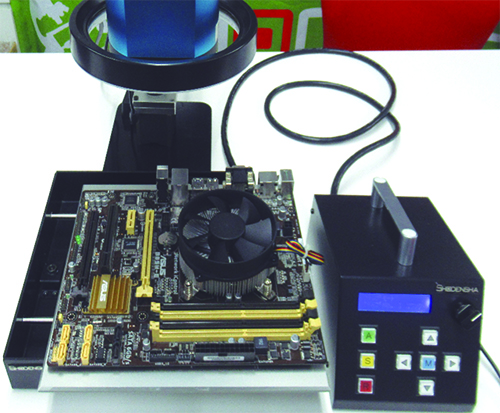

  • Visual inspection of motherboard board with height difference

    Visual inspection of motherboard board with height difference

  • Visual inspection of motherboard board with height difference

See the list

Product specifications / operating environment

Product Specifications

Camera Specifications

Model AF200-A-XY
Working distance 100mm~∞
Field of view Working distance: 100mm (the closest distance)
171mmx92mm(3x)、24.3mmx13.5mm(20x)
Working distance: 200mm
235mmx132mm(2x)、32.4mmx18.2mm(15x)
Image sensor 1/2.8″ color CMOS
Resolution 1920×1080(Full HD)/td>
Storage device MicroSD card (up to 32GB)
Recording format Still image: JPEG / BMP Video: H.264
Monitor connection HDMI cable (standard accessory)
Power supply DC12V
Maximum power consumption Below 15VA
Accessories Mouse, AC adapter, micro SD card (8GB), HDMI cable


XY Stage Specifications (Standard)

Range of movement 128×138㎜
Moving speed Low speed 5mm/s Medium speed 30mm/s High speed 60mm/s
Angular resolution 0.1㎜
Repeat accuracy ±0.1㎜
Positioning accuracy ±0.1㎜
Configurable number of inspection points 10 points
Load 1kg
Weight 3.5kg
Stage dimensions 250×250×65㎜
Accessories XY stage, control box, AC adapter

Hardware

Example Configuration

Camera AF200HD
XY stage KB-2525
Camera stand GR-STD2HB
