Affordable visual inspection camera SVS2000-M
Automatic measurement with the camera alone! Smart camera with built-in measurement software
Automatic dimension measurement
Affordable
No PC required
Features of Affordable visual inspection camera
SVS2000-M
Features
- Built-in software eliminates the need to install on a PC!
- Easy configuration on web browser.
- After configuring the settings, you can measure without connecting the camera to a PC.
Introductory video
Introductory video
Automatic measurement with the camera alone
Too easy
Camera settings
A PC is only required to configure measurement settings.
After connecting the camera to a PC with a LAN cable, start configuring on the web browser.
You can adjust the brightness of the camera and the LED light with camera built-in software.
You can configure measurement settings and communication settings with external triggers in the same way.
About measurement function
5 types of measurement are available.
① Circle detection, radius measurement
② Line detection, angle measurement
③ Angle between two lines measurement
④ Distance between point and line measurement
⑤ Distance between parallel lines measurement
You can set a threshold for each value to make an OK/NG evaluation.
About input / output signals
An input from an external device can go to either PNP or NPN output.
The camera’s output also supports both PNP and NPN signals.
The input/output is connected to the camera cable.
Various settings are available…

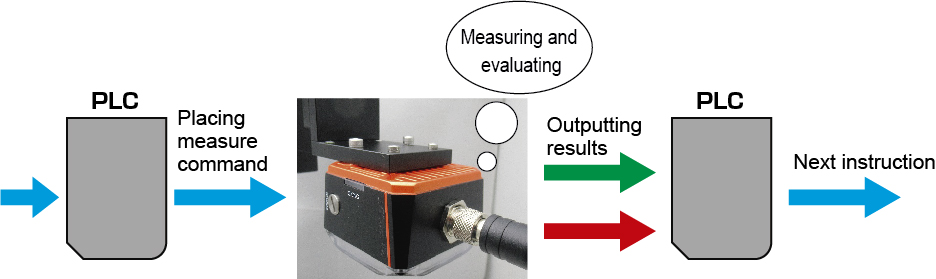

No PC required after setting is complete!
Operating as standalone device from measurement to output of measurement results.
Operation example
Sample collection
-
Diameter measurement
-
OK / NG evaluation by measuring angle
-
Area measurement/Chipping detection
-
OK / NG evaluation by counting
Specifications / operating environment
Specifications
| Model | SVS2000-M |
|---|---|
| Image sensor | 1/2.9″CMOS |
| Resolution | 1440×1080 |
| Pixel size | 3.45µm × 3.45µm |
| Frame rate | 60fps |
| Lens focal length | 12.4mm |
| Connection interface | Ethernet |
| Power supply | DC12V or DC24V |
| Power consumption | 5.4W @ DC12V |
Operating environment (During setting)
| Compatible OS | Windows 10 |
|---|---|
| Browser | Google Chrome |
Purchase process
-
STEP1
Contact us by phone or email.
-
STEP2
We lent out demo machines for free.
You can also send us your sample and request a free test.
-
STEP3
Placing an order
