●Variable magnification lens allows automatic image dimension measurement over a wide field of view!
●Easy! Automatically measure image dimensions with just a click
Computer is not included.
Automatic dimension inspection machine (variable magnification lens) AT-Measure WL
Field of view
*The actual accessories are transmitted lighting, so they will not appear like this.
 |
 |
|
Minimum field of view 63.0mmx47.5mm
|
Maximum field of view 14.0mmx10.5mm |
Comparison of field of view
Easy usage
Easy setup

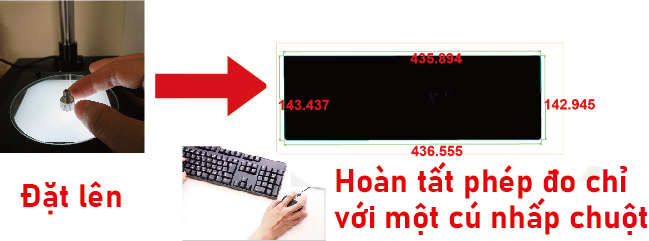

First, place the target object and with just one click, the system will automatically and provisionally measure the dimensions of the candidate objects.
After that, you can freely edit and add the points you want to measure and register the product type.
After that, you can freely edit and add the points you want to measure and register the product type.
Easy automatic measurement
Just place the object and click once!
The dimensions of the registered part of the product will be measured automatically.
The dimensions of the registered part of the product will be measured automatically.
Easy data storage
Measurement values can be saved in Excel data format. Still images can also be saved.
If you want to measure a wide field of view at once!
Variable magnification lens adopted

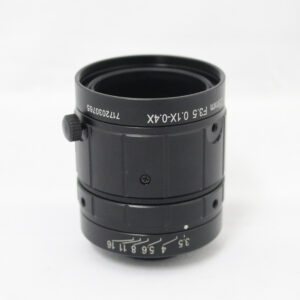

4K 1-inch compatible macro lens
Parallel light transmitted illumination
The use of parallel light transmission illumination reduces light reflection on the target object, resulting in clear contours and emphasized edges, enabling highly accurate dimensional measurements.
Calibration glass scale included
A calibration certificate can also be provided with the calibration glass scale (fees apply).
  |
So highly accurate!!
Other Function
Can judge OK/NG
You can set the lower and upper tolerance limits to make a pass/fail judgment.
Failed values can be displayed in a different color in the image.
Failed values can be displayed in a different color in the image.
Pinpoint digital zoom function
By turning the mouse wheel, you can use digital zoom to enlarge the image, centering on the point indicated by the mouse cursor when you click on the measurement point.
Specification
General Specification
- Model Number
- AT-Measure WL
- Field-of-view
- 63.0mmx47.5mm～14.0mmx10.5mm
- Accessory

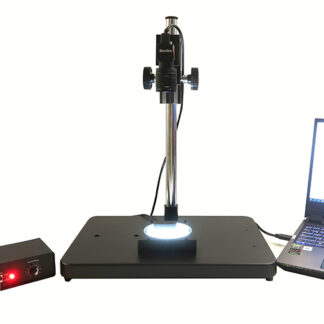

- High resolution variable magnification lens WL0104-12MP、5.0 MP USB3 Vision Camera、Parallel transmitted light illumination、Camera Stand、Calibration glass scale、Automatic image dimension measurement software AT-Measure
*Computer is not included.
- Working Distance
- 280mm（at 63.0mmx47.5mm） 65mm（at 14.0mmx10.5mm）
- Resolution Power
- 0.0252mm
Camera
- Number of Pixels
- 5.0MP
Operating environment
Computer is not included.
Please prepare a computer with the following specifications.
| Supported OS | Windows 8、8.1、10（64bit） |
|---|---|
| CPU | Intel Core i3 or higher |
| Memory | 8GB or more |
Optional foot switch for even more convenient use
|
Foot Switch
AT-FS ・Inspection can be started easily with the foot switch. |
 |
If you want to operate it manually, try this MFShip version.
Manual measurement at low cost!
Various measurement functions and focus stacking are also possible
|
Dimensional Inspection Machine
MF-Measure WL ●Measurement assist (edge auto-fit) function |
 |
