Spherical workpiece inspection system
Inspecting spherical workpieces using a line scan camera
Features
- Uses a line scan camera
- The lighting changes depending on the object, inspection, and measurement item.
-
Only One
Hardware-
Software
Inspection: Spherical workpiece
-

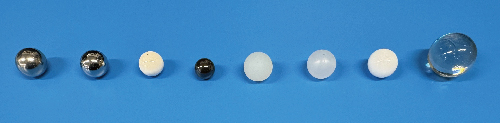

Inspecting spherical workpieces such as SUS304, SUJ2, alumina, ceramic, Urethane, PP, Duracon, Glass.
●Line scan camera Visual Inspection
●Line scan camera Dimension measurement
●3D profiler for visual inspection
●Defect detection
-

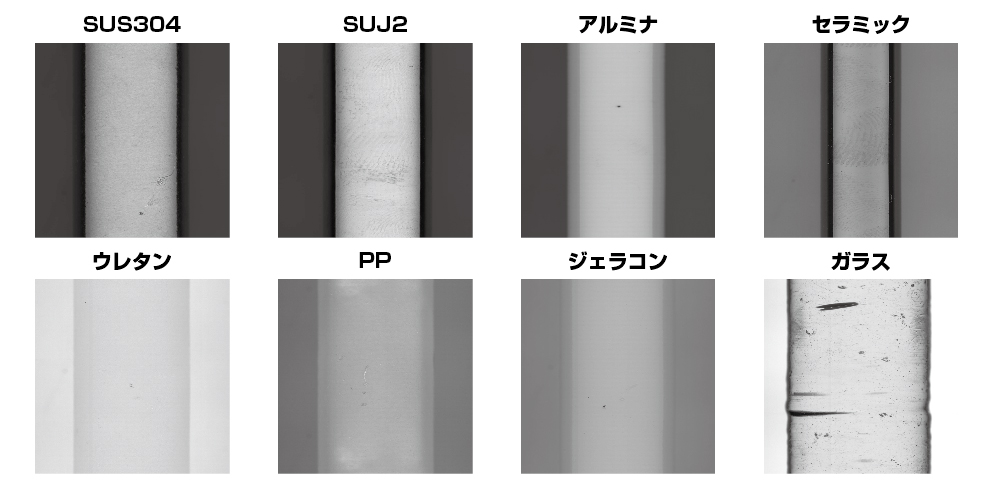

Shooting example 1: Visual inspection

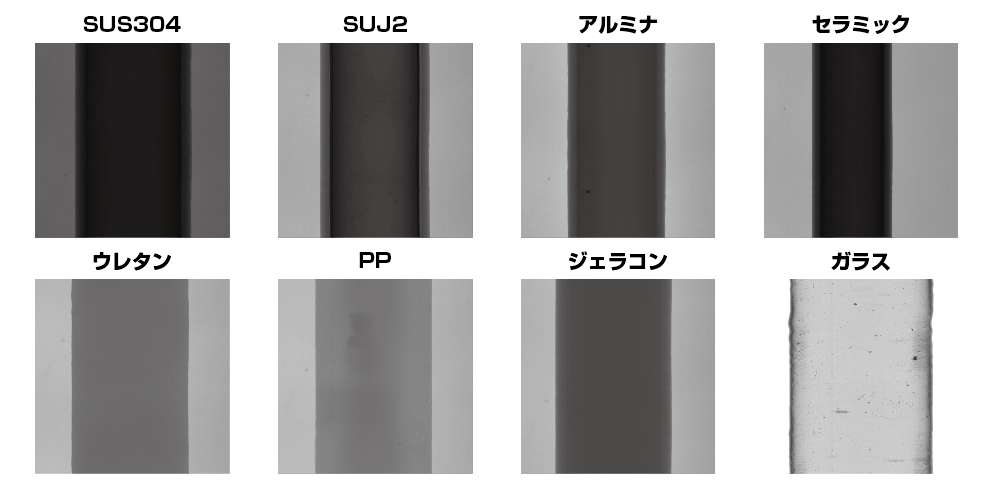

Shooting example 2 Dimension measurement

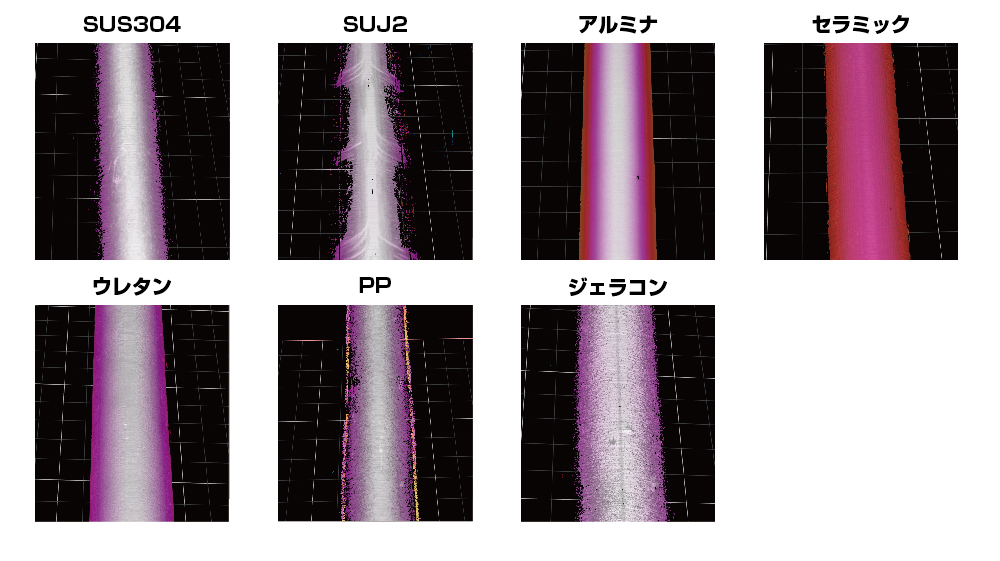

Shooting example 3 Visual inspection <3D profiler>
3D profiler is not good at shiny or transparent objects.
The objects that can be inspected are: ●SUS304 ●Alumina ●Ceramic ●Urethane Other than that, data may be partially missing.

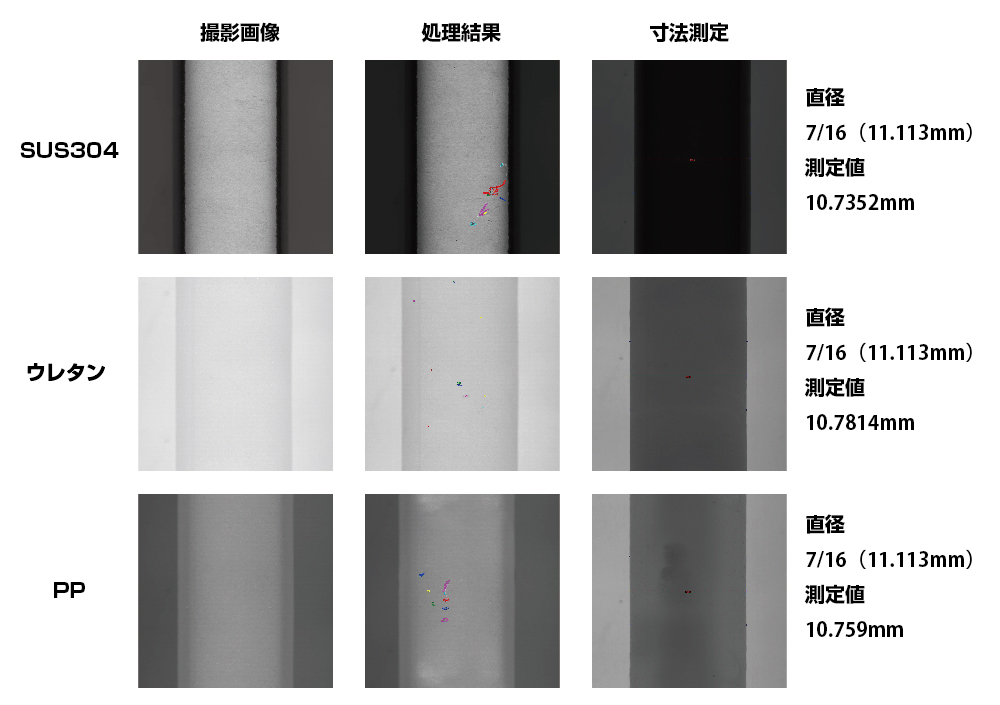

Shooting example 4 Defect detection example
There is an error from the actual diameter value, but this is because the calculation is based on the design value obtained from the lens magnification.
Calculated values can be corrected by calibrating with captured images.
How to introduce
-
STEP1
Please contact us by phone or E-mail.
-
STEP2

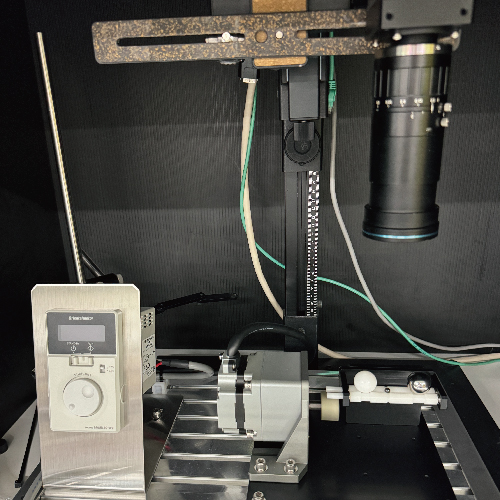

We have set up the shooting environment at our company.
You can request a free test by sending us your sample.
-
STEP3
Introduction
