A microscope that replaces a projector
Non Calibration Microscope
No PC required-
Hardware
-
Software
Features of Non Calibration Microscope
Features
- 1.Built-in calibration data
- 2. Camera and lens are linked
1.Built-in calibration data
There is no need for calibration, which is always required when measuring with a microscope.
Calibration data is built into the camera, so when it arrives, you can use it immediately by connecting it to a monitor.
2.Camera and lens are linked
Since the camera and lens are linked, just by changing the magnification of the lens, the calibration data will also change automatically.
You can perform measurement work without worrying about forgetting calibration or making calibration mistakes.
Measurement items
Distance between 2 points, distance between parallel lines, polygon circumference, area, circle radius, circumference Arc angle/radius/distance between two circles/angle/text insertion

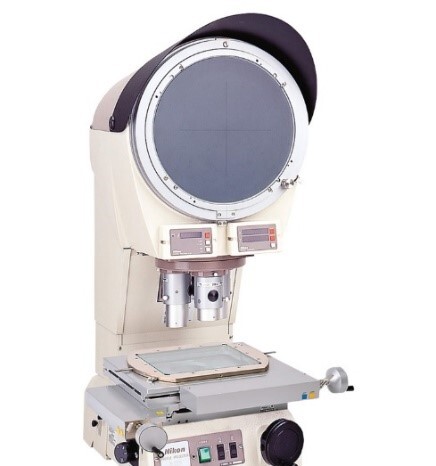

What is a Projector?
-
-

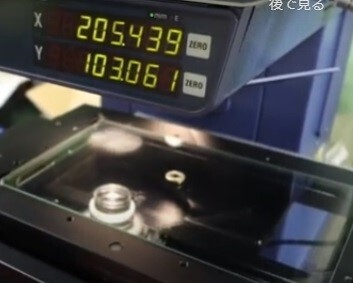

The shadow image projected with transmitted illumination is projected on a large screen, and the shadow of the object is measured by the amount of movement of the attached XY stage.

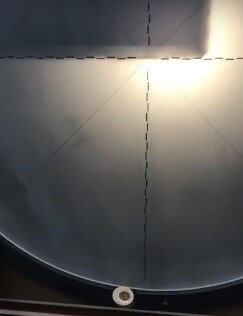

Display a cross line on the screen, place the target measurement point on the cross line, and move the XY stage to measure.
The dimensions are determined by looking at the amount of movement of the XY table, so the accuracy of the XY stage is the measurement accuracy.
-
(1) Display crosslines or similar markers on the screen. Align one end face (starting point) of the object to be measured with the crosslines.
-
(2) Reset the stage to zero
-
(3) Move the stage until the crosslines align with the measurement’s endpoint, and the reading on the micrometer at this point becomes the measurement value.
-
– High cost
-
– Time-consuming measurements
-
– Limited to only horizontal and vertical measurements (though diagonal measurements are possible with rotating table)
-
– Can only measure distances between two points (unable to measure angles, areas, or distances between centers of circles)

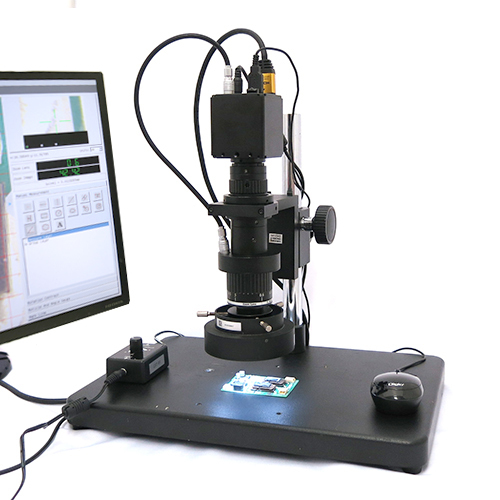

Solution: Non-Calibration Microscope CT200HD
-
-
Microscopes offer two key advantages within the same
screen:
(1) The ability to measure any point with a simple click.
(2) Capability to measure various parameters such as angles, areas, and distances between centers of circles.
Furthermore, this dimension-measuring microscope addresses three common shortcomings of regular microscopes:
(1) The need for calibration upon installation. → This dimension-measuring microscope is calibrated at the factory before shipment.
(2) The need to recalibrate when changing magnification. → Communication between the lens and camera eliminates the need for recalibration when switching magnifications.
(3) Uncertainty in measurement accuracy. → We offer optional specialized glass scales that come with calibration certificates. Moreover, the calibration certificate for the glass scale used in factory adjustments is available for download on our website.
Conclusion:If considered as a tool to verify the start and end points of measurements as an alternative to projectors, replacing it with a Non-Calibration Microscope is feasible. This substitution can lead to cost reduction.
