10.0 Megapixel USB 3.0 Camera DN3R-1000

産業用カメラ
  • Machine vision camera using USB3.0.
  • Camera mount C(available for use as CS mounting by taking off a 5mm close-up photography ring)
  • Include outside trigger input terminal.
  • Strobe output terminal is attached.
  • Global shutter model makes a lineup while being a CMOS sensor.
  • Prevent frame dropping function is attached so that frame rate will be prevented from becoming late by the affinity with the PC
  • The double setup of the same model is possible.
  • Saving image, video by Viewer software.
  • There are 4 holes of the M3 in the camera base that can be used to fix camera well.
  • The tripod adapter is sold separately.
  • USB3.0 cable with screw is sold separately.



usb30_back

<Backside of camera>



Print



<Camera base>

Product Inquiry phone028-3911-2006

Features

The best point of USB camera

USB3.0 camera
1.Light weight, small compact size

The USB3.0 camera is compact size
of 30x30x36.5mm!
※The photograph is USB 2.0 camera.
USB3.0 camera
2.Full SDK

Support for C#、C++、VB.NET、
vb6, workstation(Linux)

Here is the point: easy to use by even the person who is weak in program!
If you have a simple program, we will produce it on behalf you.
USB3.0 camera
3.Two ways of fixed methods !

There is a hole of the M3
in four places in the
USB camera authentic sample.
Using this hole to fix camera.

産業用USBカメラ
Available use the three-legs hole (1/4-20UNC)
by attaching the tripod adapter of the USB camera option.



産業用USBカメラ
4.Outside trigger terminal

Outside trigger terminal、
Strobe output terminal

Here is the point:
Available use ● saving image function and
● temporality stop image function by
outside signal from outside trigger terminal.
Easy to use for anyone who has a trouble with setting up program!
We provide trigger software with reasonable price.
産業用USBカメラ
5.Viewer software standard features

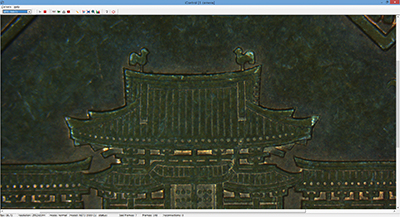

Simple Viewer software is attached.
Available to save image and video by using this software.
●Saving format:  BMP/JPEG for image or AVI for video
※About saving video
The maximum size is 4GB.

<Reference>
Video saving time
1280x1024→about 20s
640x480→about 50s

Other edge emphasis functions are attached.
The multiplex setup of the camera is possible, too.
USB3.0 camera
6.Prevent frame dropping function

As preventing from unmatching between desktop and camera and adjusting the frequency of picture , the frame rate can be close to the ideal level.
※It is possible to prevent the display speed from being made by matching with PC.
USB3.0 camera
7.The multiplex start of the camera is possible!

If the double setup USB 3.0 camera is the DN3 series, a camera of the DN2 series, a double setup is possible by all combinations.
If you want to set up more than camera, please ask for technical support.

USB3.0 camera
8.Full line up

USB 2.0 camera 0.3megapixel- 10 megapixel Color/Mono
USB 3.0 camera 0.3 megapixel - 10 megapixel Color/Mono
For each type, enclouse housing camera / board cameara and Color / Monochrome are provided.
Please choose product that suits your purpose.

Specification

General Specification

Model Number
DN3R-1000
Supported Operating System
WindowsXP, Vista,7, 8, 10
Pixel size(μm)
1.67x1.67
Note
Attachment Viewer software/sample SDK
Option
Trigger Software (Optional)

Camera

Image Sensor
1/2.3 inch CMOS
Number of Pixels
10.0 Megapixel
Maximum Resolution
3840x2748
Frame Rate
7.5fps  (3840x2748)
Connection
USB3.0
Shutter
Rolling

Lens

Mount
C Mount

Lighting

A powerful measuring software MeasurePRO

MeasurePRO

A measuring software developed by our company.
Able to display multiple crosslines, grids, saved thumbnails and comments. Can export the data to Excel.

  • Measuring types

    [Distance between 2 points]
    [3 Points Angle]
    [4 Points Angle]
    [Diameter]
    [Distance between 2 circles]
    [Perpendicular line]
    [Area]

  • Features

    ・Export to excel
    ・Show multiple crosslines
    ・X, Y axis scales
    ・Show grid lines
    ・Display both saved image and live image on separate screens
    ・Insert comments

MeasurePRO-Ex

MeasurePRO-Ex

Measuring software with focus stacking function

Standard accessories are two glass scales for calibration (GS - 0.2, GS - 0.5).

Measure easily on the screen.

  • Measuring types

    [Distance between 2 points]
    [3 Points Angle]
    [4 Points Angle]
    [Diameter]
    [Distance between 2 circles]
    [Perpendicular line]
    [Area]

  • Features

    ・Focus stacking function

The powerful MeasurePRO and the function-rich MeasurePRO-Ex measurement software comparison

 ・Please refer to the table below for the availability of the functions you need

  MeasurePRO-Ex MeasurePRO
Measure distance between 2 points
Focus stacking
Export to excel
Show thumbnails
Adjust screen magnification
Display crossline Multiple Multiple
Display grids
Display X, Y axis scales
Supports Windows XP、Vista、7、8 and 10 (32bit・64bit)
