FULL HD Camera with split screen feature GR200HD2-CX

ハイビジョンカメラ

C-Mount HD Camera allows you to observe ultra-high-resolution (full HD) images with resolution 1920 x 1080.
It is equipped with a split screen feature.
You can save 1 image for reference and show it on one half-screen and show your observation image on the other for comparison.

Easy installation: All you need is to connect it to a monitor using the included HDMI cable.
(Compatible with 16:9 wide screen monitors)

It allows display of HD images (5 times more than ordinary cameras) at 60 frames/s.
It allows you to save images (in BMP format) through its USB slot.

*Note: Please use an USB of 32 GB or less.



Included HDMI cable to for image outputs.

Industrial monitors and PC monitors with an HDMI port highly recommended.
(Compatible with TV monitors, but issues may arise in some cases)
Demo products are always available. Please contact our technical team for more details.

Product Inquiry phone028-3911-2006

Features

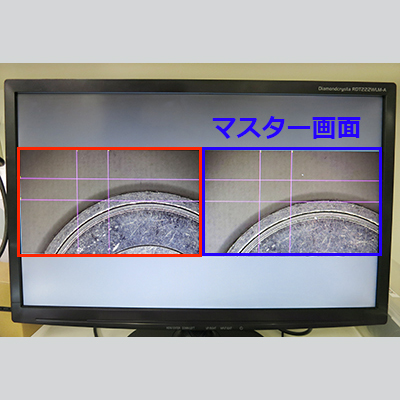

Split screen feature (No PC needed)

2画面表示機能付ハイビジョンカメラ GR200HD2-CX
You can split the screen in two, one for reference image and one for observation image, for comparison.

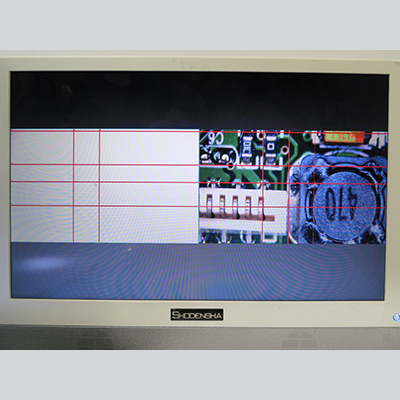

Line generation function

2画面表示機能付ハイビジョンカメラ GR200HD2-CX
You can generate lines in designated positions. You can show equivalent lines on both reference image and observation image for comparison.

Easy setting! Easy navigation! Easy saving!

ハイビジョンマイクロスコープ

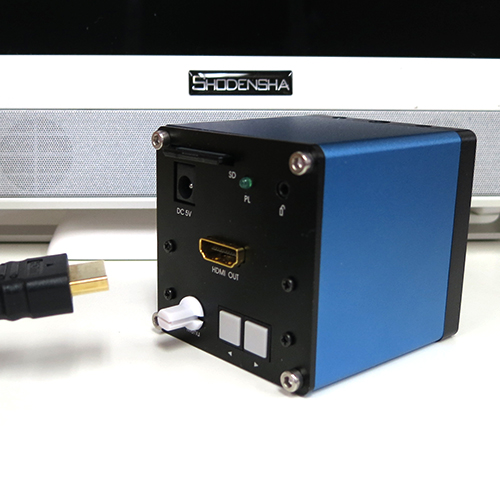

You can set the camera with its back buttons.
ハイビジョンマイクロスコープ
You can connect it with a wide-screen monitor using an HDMI cable.

Easy setting! Easy navigation! Easy saving!

ハイビジョンマイクロスコープ
You can connect it directly with an HD monitor or wide-screen monitor with an HDMI port.
ハイビジョンマイクロスコープ

Easy setting! Easy navigation! Easy saving!

計測機能付ハイビジョン マイクロスコープ
It comes with an USB slot!
You can save still images to a USB.
ハイビジョンマイクロスコープ
Compatible with external trigger device:
You can take pictures with external ON/OFF signals.

Specification

General Specification

Model Number
GR200HD2-CX
Power Supply
DC5V
Accessory
HDMI cable, AC adapter, USB storage (8GB), mouse (lens not included)
Mount
C mount

Camera

Image Sensor
CMOS 1/3inch
Number of Pixels
2.0 Megapixel
Maximum Resolution
1920x1080(FULL HD) 24Bit
Frame Rate
60fps (1920x1080)
Connection
HDMI port

Accessory

2画面表示機能付ハイビジョンカメラ GR200HD2-CX
・HD camera with split screen feature
・AC adapter
・USB storage (8GB)
・Mouse
・HDMI cable

HDR function



This function enables a wider dynamic range than ordinary images.
You can balance underexposure and overexposure in overly bright or dark images.
By applying this HDR function, you can take pictures with reduced halation.

p8x0nqxl 192qy0i7
Normal mode HDR mode
kf31fnix dv5hdmqm
Normal mode HDR mode
y4t6p981 lzp3he7g
Normal mode HDR mode


What is High Dynamic Range (HDR)? →Find out here
