FULL HD Microscope TG200HD2

ハイビジョンマイクロスコープ

A high definition microscope with resolution of 1920 x 1080. (Approximately 5 times higher than the resolution of conventional video microscope.)
Available to observe it with a high-resolution image of the full high-definition.
Easily connect to monitor with HDMI cable.

※Please use a widescreen 16:9 monitor

・Total magnification of 25 to 150 times enabled by an optical 6x zoom lens.
・A zoom lens with latch function to lock each memory. (It is suitable to reduce error of measurement by the operator.)
・A 0.5x auxiliary lens is offered (optional).
・Working Distance : 90mm
・Resolution:1920×1028 FULL HD (1080p)
・No display delay(60fps)
・Images can be saved with Built-in USB memory slot (Image saved in BMP format)
・HDR (High Dynamic Range)function
・Display / Hide crossline(Black/White line)
・Connect to HDMI / Wide monitor with HDMI cable
・Built in external trigger terminal



※For HDMI, PC monitor or industrial monitor are preferred.
(TV monitors are compatible but sometimes may not be shown.)
Demonstration products are available. For further information, please contact our technical support division.

Relate to Monitor connect with HD Microscope→Check detail information here

Product Inquiry phone028-3911-2006

Features

Easy Setting! Easy Operation! Easy Store!

full hd microscope

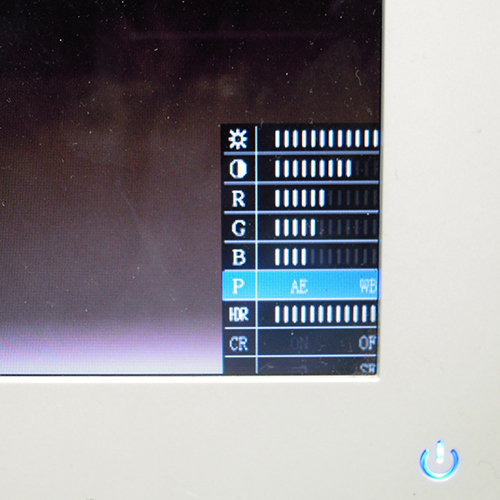

The menu will appear when switched on
FULL HD Microscope

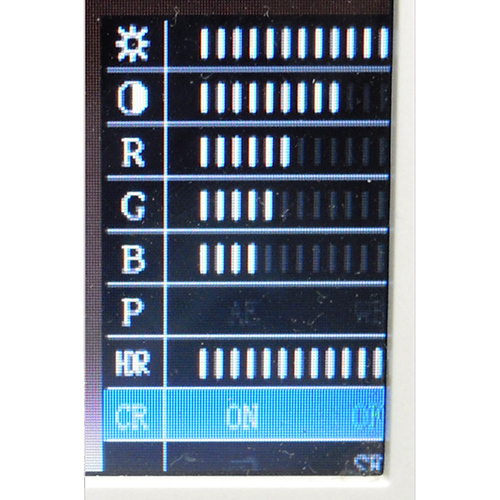

Menu: brightness, contrast, color, cross-line, sensitivity

Easy Setting! Easy Operation! Easy Store!

FULL HD Microscope

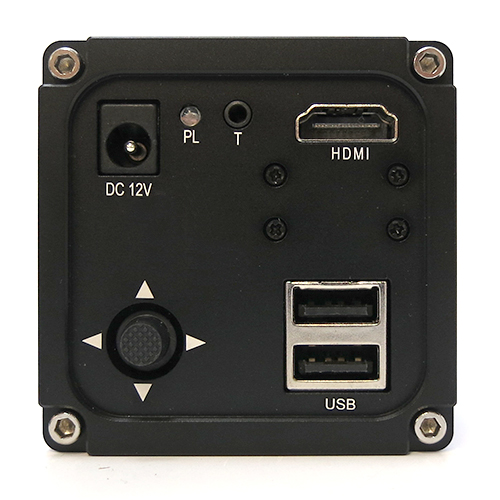

Available to set behind of the camera
FULL HD Microscope

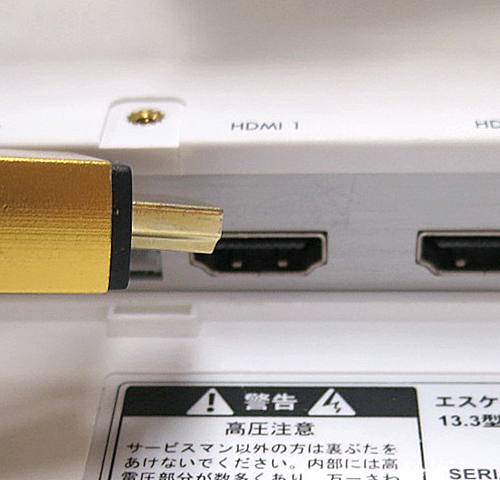

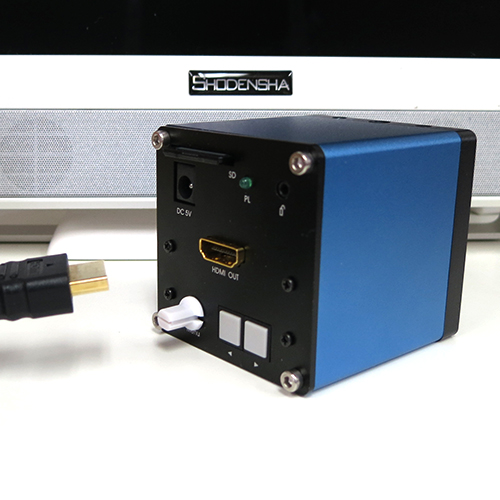

Easy connect with HDMI cable

Easy Setting! Easy Operation! Easy Store!

FULL HD Microscope

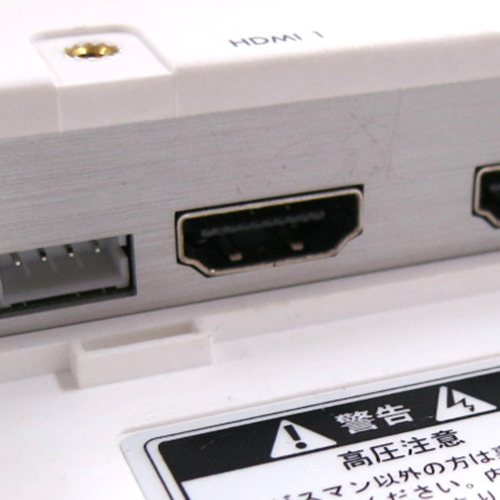

Usable with any monitor such as wide-screen monitor or HD-TV with an HDMI port
FULL HD Microscope

Easy Setting! Easy Operation! Easy Store!

FULL HD Microscope

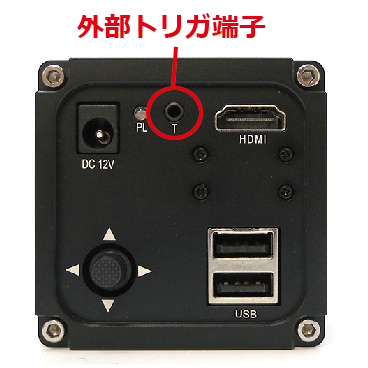

Compatible with Trigger terminal
Available to take picture by ON/OFF
outside signal.
ハイビジョンマイクロスコープ
Possible to display/hide cross line.
(display both black and white line)

Specification

General Specification

Model Number
TG200HD2
Magnification
25x-150x
Field-of-view
15.5mmx8.7mm (25x) , 2.5mmx1.4mm (150x)
Stand Dimensions
388mmx268mm x350(H)mm

Camera

Image Sensor
1/3"CMOS
Number of Pixels
2 megapixel
Resolution
1920x1080 (full HD) 24Bit
Connection
HDMI cable

Lens

Optical Magnification
x0.75-x4.5
Working distance
W.D. 90mm
Lens Holder Diameter
φ50mm
Mount
C Mount

Lighting

Accessory

ハイビジョンマイクロスコープ
・FULL HD camera with USB memory slot
・AC adaptor
・Remote controller
・USB memory (8GB)
・HDMI cable
USBマイクロスコープ
80 LED lighting
計測機能付ハイビジョン マイクロスコープ
Zoom lens
USBマイクロスコープ
Stand
USBマイクロスコープ
Protection cover

High dynamic range feature!



This microscope is come with a high dynamic range rendering function.
Underexpose or overexpose part can be easily fixed.
This combination of HDR function can greatly reduce the effect of halation.

p8x0nqxl 192qy0i7
Normal Mode HDR Mode
kf31fnix dv5hdmqm
Normal Mode HDR Mode
y4t6p981 lzp3he7g
Normal Mode HDR Mode


What is high dynamic range synthesis (HDR)? → Click here
