Image Dimension Measurement SystemAT-Measure Long
Dimension measurement just by clicking on a long object up to 1 m
Automatic dimension measurement
High Accuracy
Just one click
Features of Automatic image dimensioning system
AT-Measure Long
Features
- Limited to long objects up to 1m and thin flat plates (films, sheets, etc.)
- Automatic image dimension measurement of rectangular and square vertical and horizontal lines is possible with high accuracy!（※）
- Super simple！ Just one click to automatically measure the dimensions in the image.
※Measurement accuracy is reduced for other shapes and other measurement items, but the measurement itself is possible. Please contact us for details.
Efficiency is improved
Even if you were measuring with a giant caliper, a tape measure, or a large curved scale, you can instantly measure the dimensions by simply placing and clicking.
Super simple!
Easy setting
Place the object, and automatically temporarily measure the dimensional measurement candidates with just one click.
After that, freely edit / add the part you want to measure and register the product type.
Easy automatic measurement
Just place the object and click!
The location where the product type is registered is automatically measured.
Easy data storage
Measured values can be saved in Excel data format.
You can also save still images.
High Accuracy
Includes metal plate for calibration
Adopted angle with goniometer and spirit level
You can fine-tune the camera with the goniometer while checking the level of the camera with the spirit level.
So high accuracy!!
About accuracy
In our test, we used a 25mm block gauge, and the accuracy is
1/1000 of that, which is high accuracy within ± 0.5mm!
Other functions
OK / NG judgment
OK / NG judgment can be made by setting the lower limit of tolerance and the upper limit of tolerance.
The value that was NG can be displayed by changing the color in the image.
Pinpoint digital zoom function
By turning the mouse wheel, it is possible to zoom in with the digital zoom around the point indicated by the mouse cursor when clicking the measurement point.
Product specifications ・ Operating environment
Product specifications
| Model Number | AT-Measure Long |
|---|---|
| Field of View | 1,000mmx750mm |
| Working Distance | 約900mm |
| Measurement accuracy | ±0.5mm |
| Number of camera pixels | 20.0 Megapixel |
| Stand size・ Arm length・Weight |
φ700mmx2,020mm・810mm・About 30kg |

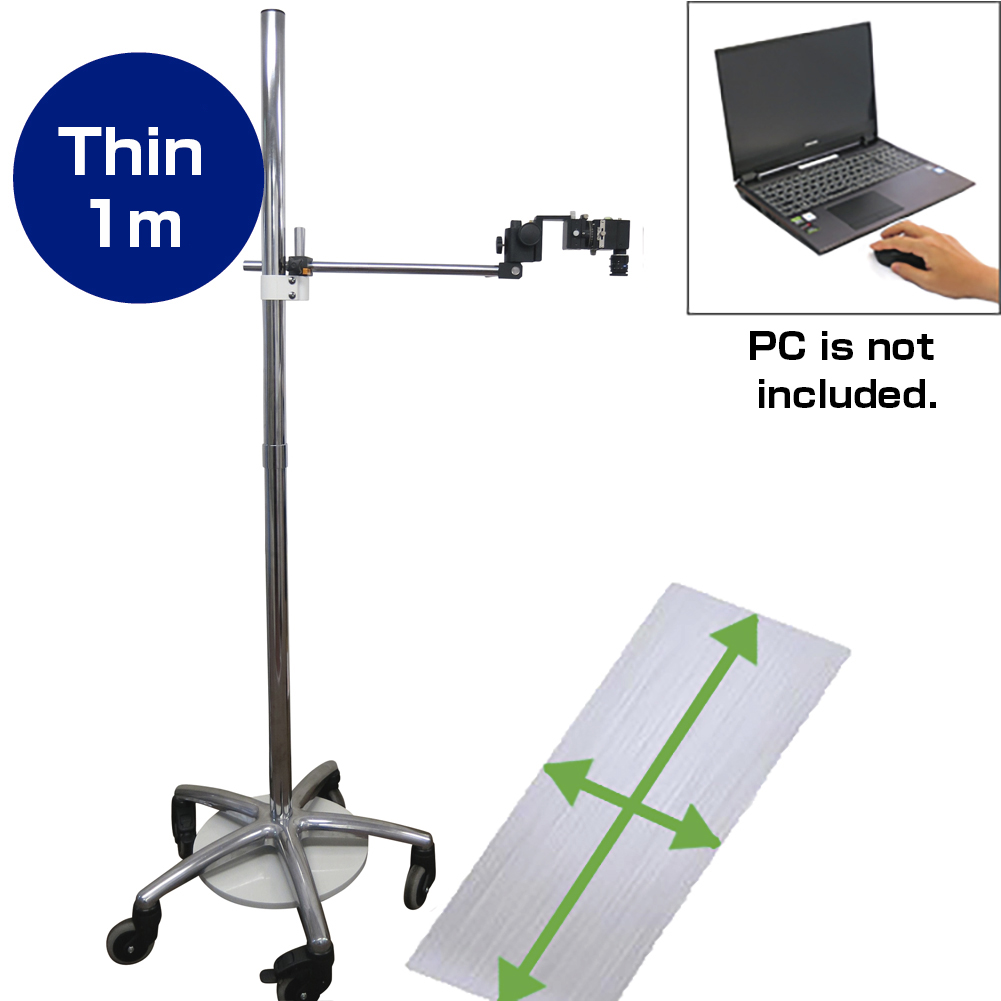

| Standard equipment | 20.0 Megapixel USB3 Vision Camera, 12mm fixed focus lens for 20.0 Megapixel, Stand with casters, Metal plate for calibration (950mmx700mm), Automatic image dimension measurement software AT-Measure ※PC is not included. |
動作環境
PC is not included.
Please prepare a PC with the following specifications separately.
| Supported OS | Windows 8、8.1、10（64bit） |
|---|---|
| CPU | Intel Core i3 and above |
| Memory | 8GB or more |
How to introduce
-
STEP1
Please contact us by phone or E-mail.
-
STEP2
We rent out demo machines free of charge. (In Japan only)
You can also send us your sample and request a free test.
-
STEP3
Introduction
