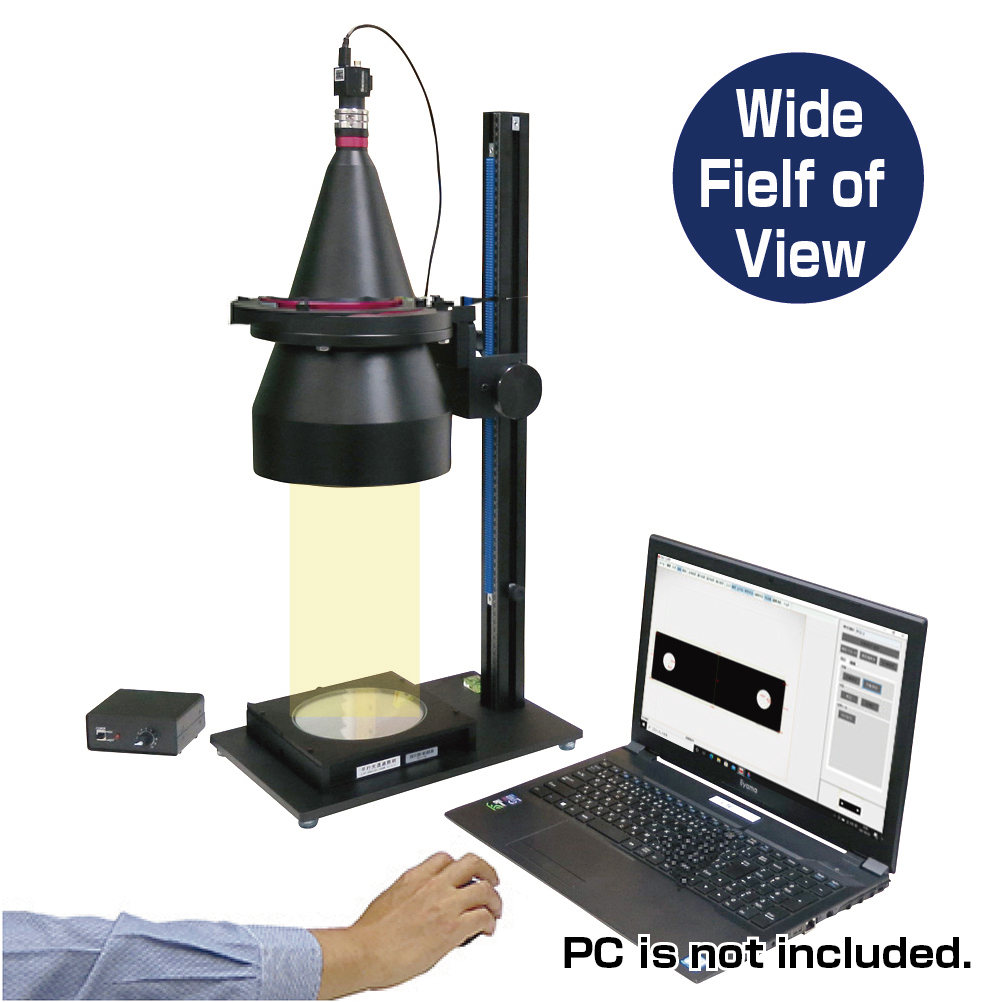

Image Dimension Measurement SystemAT-Measure ST2
2 times of field of view type of standard type ST1
Automatic dimension measurement
High Accuracy
Just one click
Features of Automatic image dimensioning system
AT-Measure ST2
Features
- Super simple！ Just one click to automatically measure the dimensions in the image.
- Highly accurate automatic image dimension measurement is possible
- Multi-point measurement can be performed instantly.
- If you register the product type, you can measure it just by placing it and clicking.
- Man-hours can be reduced regardless of the skill of the measurer.
- Good at measuring the outer shape because it measures in the shadow like a projector.
Super simple！
Easy setting
Place the object, and automatically temporarily measure the dimensional measurement candidates with just one click.
After that, freely edit / add the part you want to measure and register the product type.
Simple! No alignment required
The measurement automatically recognizes the position of the object and automatically measures the dimensions.
Also supports rotation.
Easy automatic measurement
Just place the object and click!
The location where the product type is registered is automatically measured.
Easy data storage
Measured values can be saved in Excel data format.
You can also save still images.
High Accuracy
Adopted both sides telecentric lenses
High-Accuracy dimensional measurement is achieved without image distortion by adopting both sides telecentric lens.
Adopted parallel light transmission lighting
By adopting parallel light transmission lighting, there is little light wrapping around the object, the outline is clear, the edges are emphasized, and highly accurate dimensional measurement is realized.
Uses a stand with a spirit level
The stand is equipped with a spirit level for more accurate dimensional measurement.
Includes calibration glass scale
It is also possible to attach a calibration certificate to the calibration glass scale. (Paid)
So high accuracy!!
About accuracy
In our test, we used a 25mm block gauge, and the accuracy is
1/1000 of that, which is high accuracy within ± 50μm!
In addition, the above accuracy has been achieved anywhere on the screen.
Other functions
OK / NG judgment
OK / NG judgment can be made by setting the lower limit of tolerance and the upper limit of tolerance.
The value that was NG can be displayed by changing the color in the image.
Pinpoint digital zoom function
By turning the mouse wheel, it is possible to zoom in with the digital zoom around the point indicated by the mouse cursor when clicking the measurement point.
Product specifications ・ Operating environment
Product specifications
| Model Number | AT-Measure ST2 |
|---|---|
| Field of View | 108mmx80mm |
| Working Distance | 318mm |
| Depth of field | 157mm |
| Measurement accuracy | ±50μm |
| Number of camera pixels | 5.0 Megapixel |
| Withstand load | 2kg |
| Dimensions ・ Weight | 240x360x730mm About 14kg |
| Standard equipment | Both side telecentric lens, 5.0 Megapixel USB3 Vision camera, Parallel light transmission lighting, Stand with spirit level, Glass scale for calibration, Automatic image dimension measurement software AT-Measure ※PC is not included. |
Operating environment
PC is not included.
Please prepare a PC with the following specifications separately.
| Supporeted OS | Windows 8、8.1、10（64bit） |
|---|---|
| CPU | Intel Core i3 and above |
| Memory | 8GB or more |
How to introduce
-
STEP1
Please contact us by phone or E-mail.
-
STEP2
We rent out demo machines free of charge. (In Japan only)
You can also send us your sample and request a free test.
-
STEP3
Introduction
