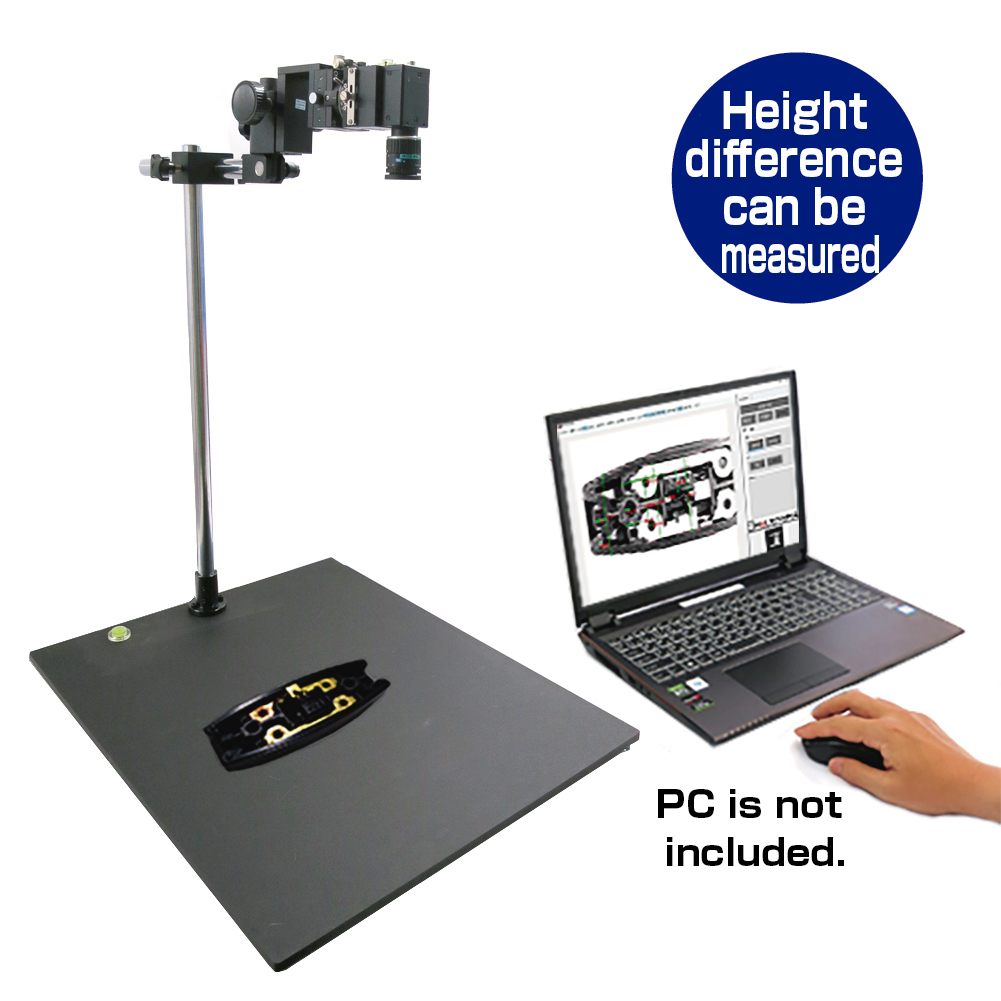

Image Dimension Measurement SystemAT-Measure Wide
Even if there is a height difference, it can measure up to a total length of 360 mm
Automatic dimension measurement
High Accuracy
Just one click
Features of Automatic image dimensioning system
AT-Measure Wide
Features
- Super simple! Automatically measure dimensions in the image with just a click.
- It is possible to measure even those with a height difference.
- 360mmx360mm wide field of view automatic image dimensional measurement is possible with high accuracy!
Super simple！
Easy setting
Place the object, and automatically temporarily measure the dimensional measurement candidates with just one click.
After that, freely edit / add the part you want to measure and register the product type.。
Simple! No alignment required
The measurement automatically recognizes the position of the object and automatically measures the dimensions.
Also supports rotation.
Easy automatic measurement
Just place the object and click!
The location where the product type is registered is automatically measured.
Easy data storage
Measured values can be saved in Excel data format.
You can also save still images.
High Accuracy
Lens distortion correction / dimensional calibration
A plate for lens distortion correction is attached.
A plate for lens distortion corrects image distortion caused by the lens.
Height calibration / dimensional calibration
Five types of blocks for height calibration are included.
Blocks for height calibration correct the distortion due to height and calibrates the dimensions.
50×50×Ｈ5mm
50×50×Ｈ50mm
50×50×Ｈ100mm
50×50×Ｈ150mm
50×50×Ｈ200mm
Uses a stand with a dedicated level
The dedicated stand is equipped with a spirit level.
You can also fine-tune the camera with a goniometer while checking the level of the camera with a spirit level.
So high accuracy!!
About accuracy
In our test, we used a 25mm block gauge, and the accuracy is
high accuracy within ± 0.1mm!
In addition, the above accuracy has been achieved anywhere on the screen.
Other functions
OK / NG judgment
OK / NG judgment can be made by setting the lower limit of tolerance and the upper limit of tolerance.
The value that was NG can be displayed by changing the color in the image.
Pinpoint digital zoom function
By turning the mouse wheel, it is possible to zoom in with the digital zoom around the point indicated by the mouse cursor when clicking the measurement point.
Product specifications ・ Operating environment
Product specifications
| Model Number | AT-Measure Wide |
|---|---|
| Field of View | 480mm×480mm |
| Measurement range | 360mm×360mm |
| Working Distance | About 600mm |
| Depth of field | 200mm |
| Number of camera pixels | 20.0 Megapixel |
| Withstand load | 10kg |
| Dimensions ・ Weight | 500mmx600mmx850mm About 14.5kg |
| Standard equipment | 20.0 Megapixel USB3 Vision Camera, 12mm fixed focus lens for 20.0 Megapixel, stand with level, Metal plate for distortion correction, Stainless block for height calibration (5 sizes), Automatic image dimension measurement software AT-Measure Wide ※PC is not included. |
Operating environment
PC is not included.
Please prepare a PC with the following specifications separately.
| SUpported OS | Windows 8、8.1、10（64bit） |
|---|---|
| CPU | Intel Core i3 and above |
| Memory | 8GB or more |
How to introduce
-
STEP1
Please contact us by phone or E-mail.
-
STEP2
We rent out demo machines free of charge. (In Japan only)
You can also send us your sample and request a free test.
-
STEP3
Introduction
