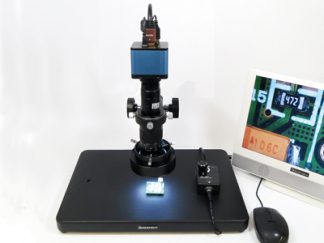

Full HD Microscope With Built In Measurement Function TG200HD2-Me

An excellent performance of the 1080p microscope camera come with built-in measurement function.

・The microscope with built-in measurement function
・HDR (high dynamic range) function
・6x optical zoom lens with total zoom of 30x~180px
・Support 0.5x auxiliary lens (optional)
・W.D. : 90mm
・1920×1028 resolution (Full HD)
・High frame per second (60fps)
・Easy to save image (BMP) with it built in USB memory slot.
・Comes with an HDMI cable.

※For HDMI, PC monitor or industrial monitor are preferred.
(TV monitors are compatible but sometimes may not be shown.)

Demonstration products are available. For further information, please contact our technical support division. ●Relate to Monitor connect with HD Microscope→Check detail information here

Product Inquiry 028-3911-2006

Features

Easy To Use And Setting

: Easy to setup

: No need of pc, keyboard or any software

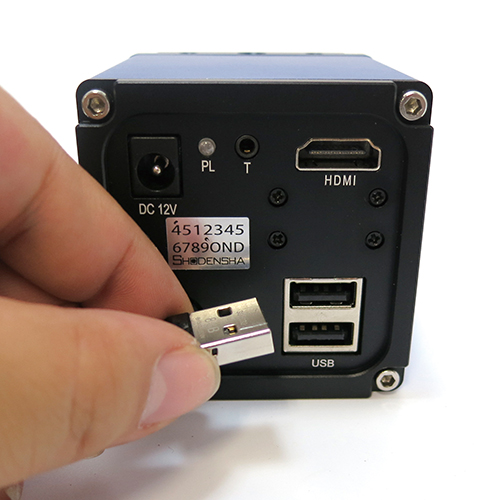

Easy To Use And Setting

: Save image into USB memory card

Specification

General Specification

Model Number: TG200HD2-Me

Magnification: 30x-180x

Field-of-view: 12.0mmx6.7mm (during 30x) , 2.0mmx1.1mm (during 180x)

Stand Dimensions: 388mmx268mm x350(H)mm

Camera

Image Sensor: 1/2.5”CMOS

Resolution: 1920（H)×1080（V) （1080p）

Connection: HDMI cable

Lens

Optical Magnification: x0.75－x4.5

Working distance: W.D. 90mm

Lens Holder Diameter: φ50mm

Mount: Ｃ Mount

Lighting

Feature of the pre-installed software for Simplified Measurement

Observe live video
Simultaneous display of live image and save screen
Save the still image (JPEG, BMP)
Pause the observed image (Freeze Function)
Measure the distance between two points
Supported OS: WindowsXP, Vista, 7, 8 and 10 (Compatible with 32bit and 64bit)
* Saving and reading calibrated data while measure

※Glass scale for the calibrations is option.

A powerful measuring software MeasurePRO

A measuring software developed by our company.
Able to display multiple crosslines, grids, saved thumbnails and comments. Can export the data to Excel.

Measuring types

[Distance between 2 points]
[3 Points Angle]
[4 Points Angle]
[Diameter]
[Distance between 2 circles]
[Perpendicular line]
[Area]
Features

・Export to excel
・Show multiple crosslines
・X, Y axis scales
・Show grid lines
・Display both saved image and live image on separate screens
・Insert comments

MeasurePRO-Ex

Measuring software with focus stacking function

Standard accessories are two glass scales for calibration (GS - 0.2, GS - 0.5).

Measure easily on the screen.

Measuring types

[Distance between 2 points]
[3 Points Angle]
[4 Points Angle]
[Diameter]
[Distance between 2 circles]
[Perpendicular line]
[Area]
Features

・Focus stacking function

The powerful MeasurePRO and the function-rich MeasurePRO-Ex measurement software comparison

　・Please refer to the table below for the availability of the functions you need

	MeasurePRO-Ex	MeasurePRO
Measure distance between 2 points	○	○
Focus stacking	○	✕
Export to excel	○	○
Show thumbnails	○	○
Adjust screen magnification	○	○
Display crossline	Multiple	Multiple
Display grids	○	○
Display X, Y axis scales	○	○
Supports Windows XP、Vista、7、8 and 10 （32bit・64bit）	○	○

Accessory

: ・HD camera with measurement function
・AC adaptor
・USB memory (8GB)
・Mouse
・HDMI cable

: Glass scale for the calibrations

: 80 LED lighting

: Zoom lens

: Stand

: Protection cover

High dynamic range feature!

This microscope is come with a high dynamic range rendering function.
Underexpose or overexpose part can be easily fixed.
This combination of HDR function can greatly reduce the effect of halation.
