Image detection of distortion and deformation of circular objects
AI Detector Product Recognition
Product Features:

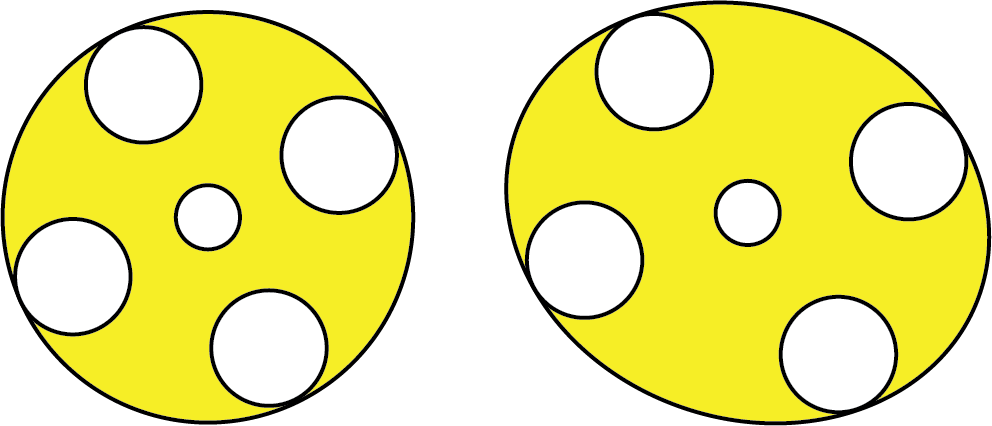

A camera is used to determine OK/NG for distortion and deformation of circular objects.
It also detects scratches and dirt.
Accuracy can be improved by photographing objects with various distortions and deformations and registering them as NG.
It is also necessary to register objects without distortion or deformation as OK.
Similarly, for scratches and dirt, it is necessary to register multiple OK/NG images.
Regarding NG judgment of distortion and deformation:
It is not a judgment that there is a distortion or deformation of a few percent from a perfect circle.
The only way to judge whether there is distortion or deformation is based on how people see it.
Please note that this is not software for measuring roundness.
If you would like to measure roundness, please contact us.
AI inspection
Hardware
-
Software
Solution: Image detection of distortion and deformation of circular objects
-
-
-

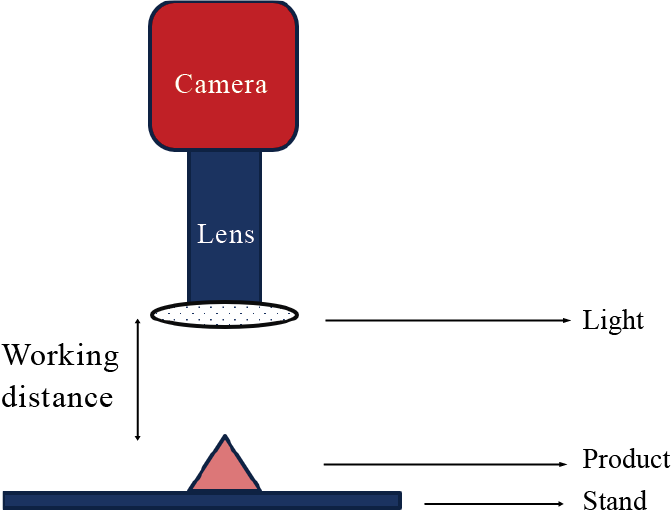

Hardware
A desktop computer with a graphics board capable of deep learning
25mm Fixed lens (working distance 22.3mm)
Software
-
-
-
Test results and Notes
-

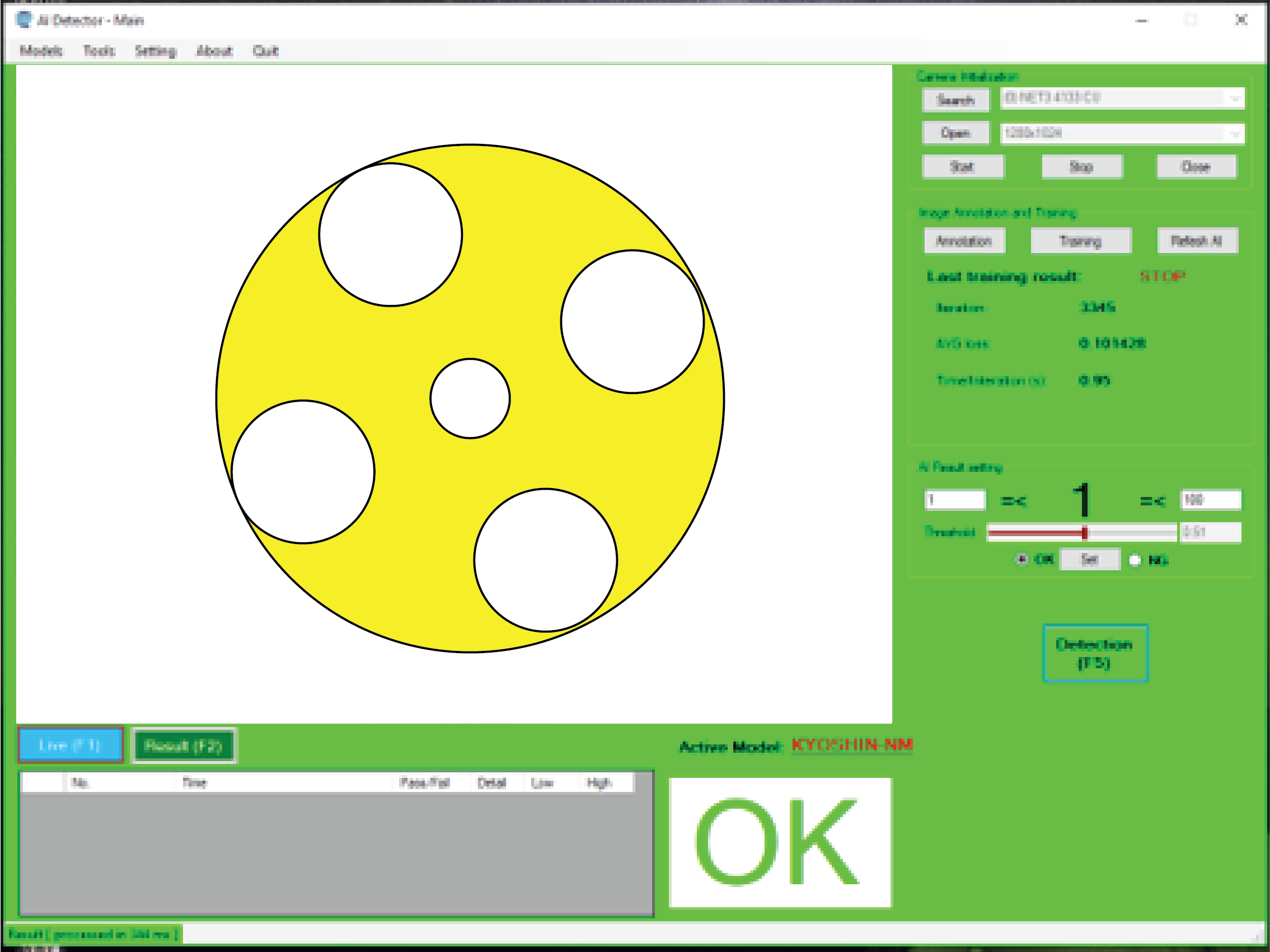

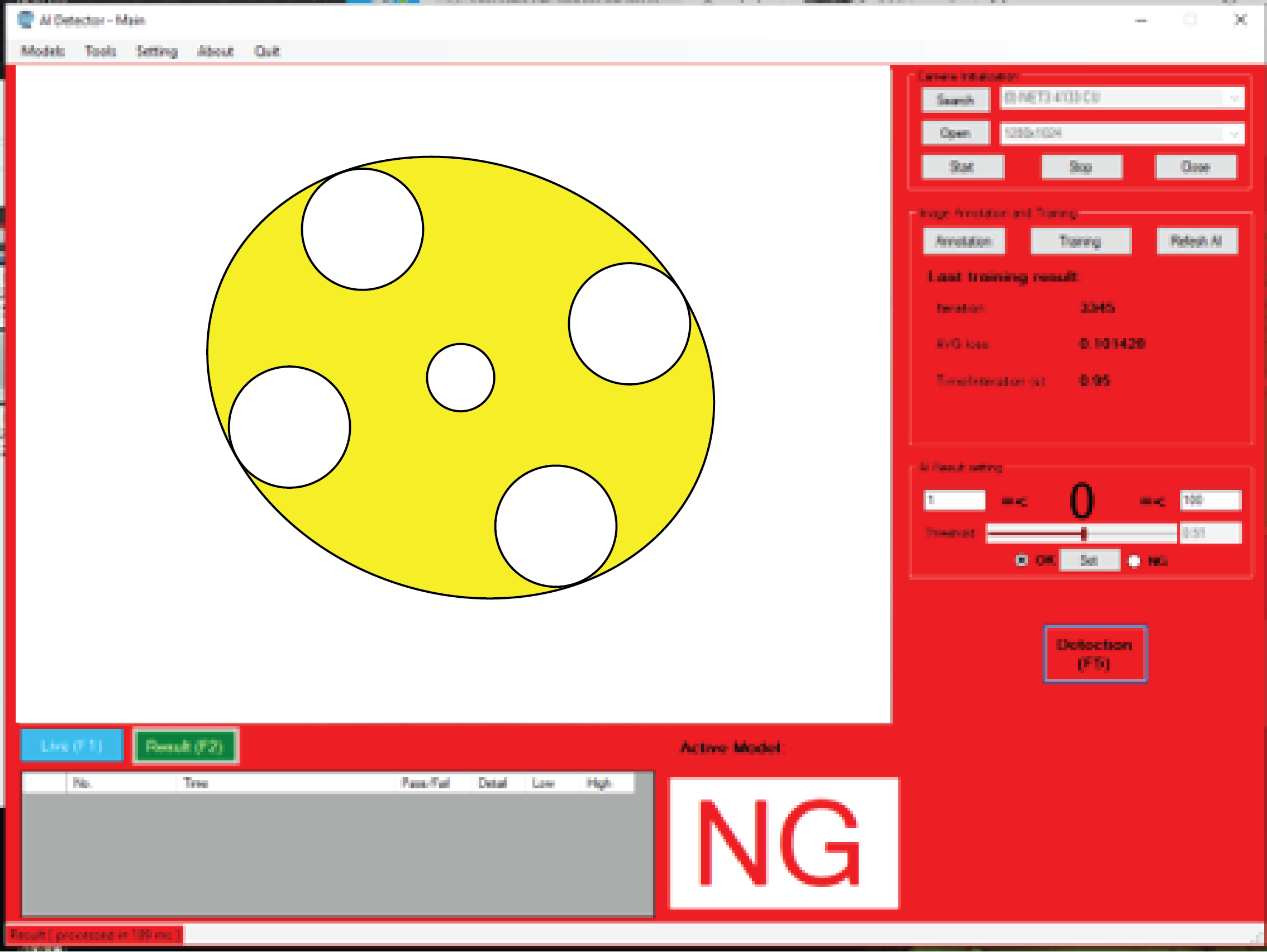

Results:
Test results:
Distortion and deformation can be recognized with up to 98% accuracy.
Scratches and dirt can be reliably detected without being misrecognized.
By having the AI software additionally learn about phenomena such as distortion, deformation, scratches, and dirt, inspections can be performed with higher precision.
The time required for one inspection is less than 500ms, making it possible to perform extremely fast inspections.
Images of OK/NG inspection results can be saved in the respective result folders. -

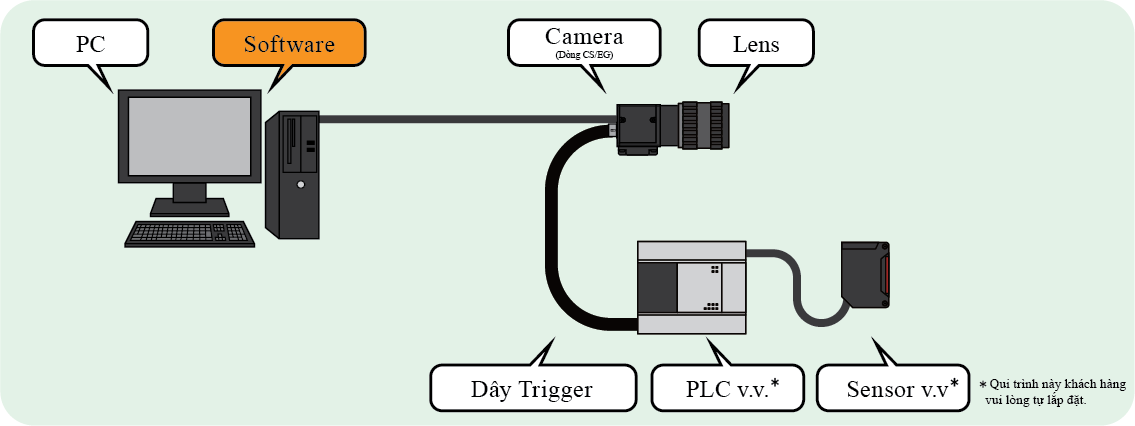

Examples of System Automation
How to introduce
-
STEP1
Please contact us by phone or E-mail.
-
STEP2
Evaluation of cameras, lenses, and lighting
Although it can be used with commercially available products, we also individually propose products that suit your company.
Demo version：You can download Demo version from here.
We also send CDs to those who cannot download. (Japan only)
Sample test：We accept sample test for free.
-
STEP3
Introduction
