Crack detection system

Crack detection system

Product Features

Detects cracks and fissures that occur on the surface of products.
We use AI software to determine various cracks and fissures.
When it detects cracks or fissures, it issues a signal as NG.


There is an optional I/O unit that can output OK and NG signals.
If you use this, it will be possible to sound an alarm etc. when NG is detected.


  • AI搭載AI learning type
  • ハードウェアHardware
  • ソフトウェアSoftware

Inspection : Crack detection system

  • Inspection contents:

    In order to detect cracks and fissures that occur on the product surface, it is necessary to have the AI software memorize multiple patterns of NG.
    Use a camera to photograph and register various patterns of cracks and fissures.
    By applying deep learning to the registered model, cracks and fissures can be detected.


    Features of the object:

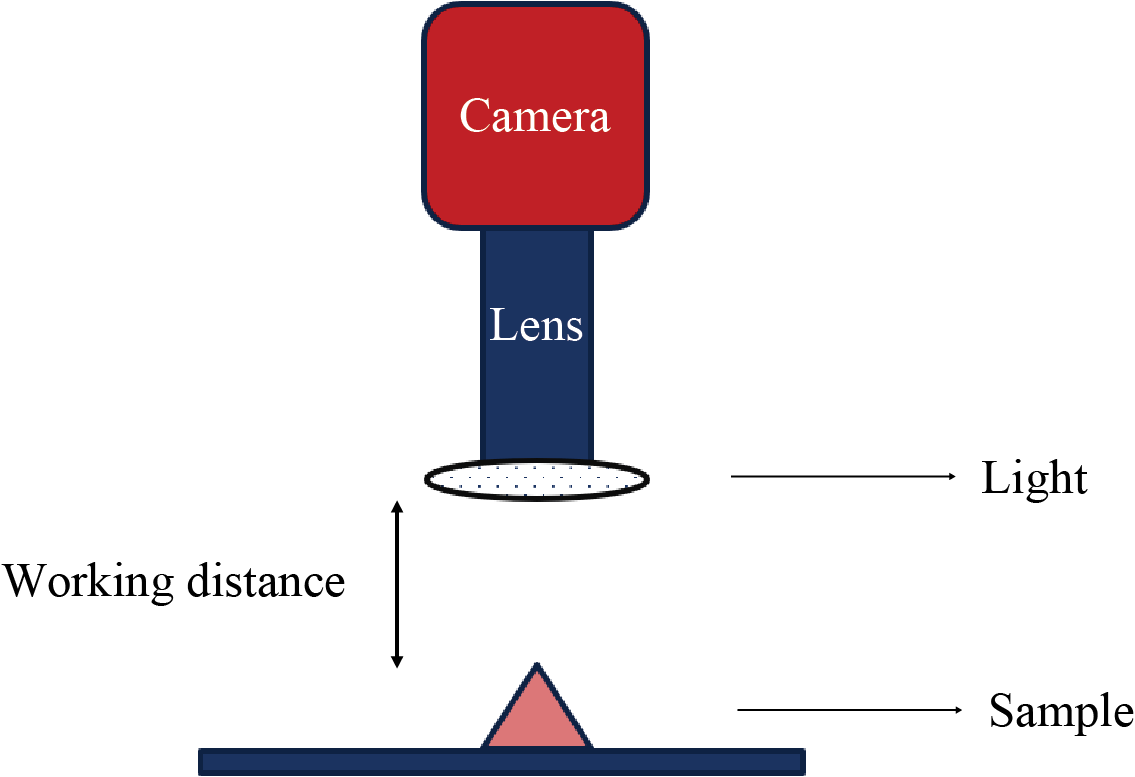

    Since this is a subject that is prone to halation, we used coaxial lighting and were able to clearly see the cracks and fissures by shining a straight light onto the surface.

  • Crack detection system

Solution: Crack detection system

  • Hardware

    A desktop computer with a graphics board capable of deep learning

    – 5MP USBCamera

    – Medium magnification zoom lens SDS-M

    – Coaxial lighting unit


    Software

    – AI-Detector


    AI-Detector can determine the presence or absence of a target by making it memorize the target.
    Determine whether there are any cracks or fissures that you remembered this time.
    If even one crack or crevice is detected, it will be judged as NG.

    • 特注外観検査装置&特注外観検査ソフト


Operational Procedure

  • 特注外観検査装置&特注外観検査ソフト

Test results and Notes

  • Test Result

    As shown in the photo on the right, we use a camera to project the product to determine whether or not there are any Cracks and fissures in the product. If even one Crack and fissure is detected, it will be judged as NG. Cracks and fissures can be detected using camera images.

  • Crack detection system NG

Examples of System Automation

      • 特注外観検査装置&特注外観検査ソフト

How to introduce

  1. STEP1

    Please contact us by phone or E-mail.

  2. STEP2

    Evaluation of cameras, lenses, and lighting
    Although it can be used with commercially available products, we also individually propose products that suit your company.

    Demo version:You can download Demo version from here.
    We also send CDs to those who cannot download. (Japan only)

    Sample test:We accept sample test for free.

  3. STEP3

    Introduction
