New product!!! Low-Cost HD Microscope with Measurements! DS2-200MUMe |
Low-Cost HD Microscope with Measurements! DS2-200MUMe
The biggest feature of this model
1. Full HD Microscope at an astonishingly low price!

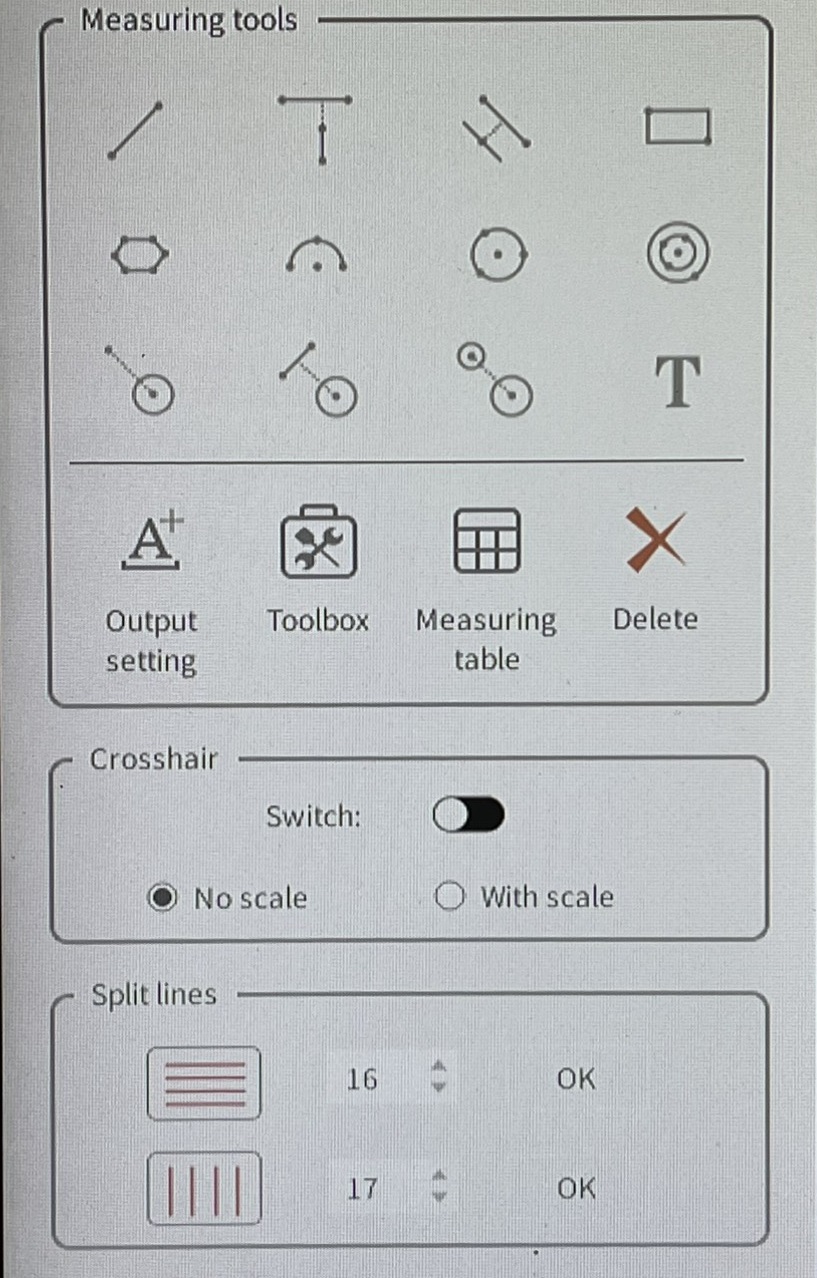

2. Abundant measurement functions
3. Equipped with optional line generation function.
Equipped with optional line generation function.
 |
Optional line display |
 |
・The color of the lines can be changed. ・The display/hide settings are customizable. ・The position of the lines can be easily configured |
|
|
Cross lines can be displayed/hidden. (Both white line/black line can be displayed) |
Other features
Can save images and videos
It is equipped with a USB memory slot!
You can save still images and videos to the included USB memory.
(Still images: JPEG format/BMP format/PNG format, Videos: MP4 format/H.264 format/H.265 format)
You can save still images and videos to the included USB memory.
(Still images: JPEG format/BMP format/PNG format, Videos: MP4 format/H.264 format/H.265 format)
Note: Please use a USB memory of 32GB or less.
Easy setup! Easy operation!
 |
 |
You can directly connect and use it with wide monitors or high-definition television monitors that have a HDMI port.
※We recommend using PC monitors or industrial monitors with high-definition ports.
(Home television monitors may have compatibility issues and may not display properly.)
We have demo units available for you to check. For further details, please contact our technical support.
(Home television monitors may have compatibility issues and may not display properly.)
We have demo units available for you to check. For further details, please contact our technical support.
Observation image (10 yen coin)”
|
At 30x magnification |
At 60x magnification |
Specification
General Specification
- Model Number
- DS2-200MUMe
- Magnification
- 8x~55x *Magnification is a calculated value converted to a 17-inch monitor
- Field-of-view
- 40x22.5ｍｍ (8x), 6x3.4ｍｍ (55x)
- Storage Media
- USB memory (up to 32GB)
- Saved File Format
- Image：JPEG／BMP／PNG, Video：MP4／H.264／H.265
- Pixel Size
- 2.75μmx2.75μm
Camera
- Image Sensor
- 1/3”CMOS
- Number of Pixels
- 2MP
- Resolution
- 1920×1080（Full HD）
- Frame Rate
- 60fps (1920x1080)
Accessory
- Camera
AC Adapter
USB (8GB)
HDMI Cable
- Lens
- White LED
- Stand
- Cover
Key Features
Ultra-compact and ultra-affordable full HD microscope for observation on a monitor!
Compact size allows for observation even in tight spaces.
Continuous variable magnification ranging from 30x to 60x.
