Packed with 0.16 MP in an ultra-compact head!
Now you can “see” areas that were previously inaccessible.
●Ultra-compact head with a 1.8mm square (2.6mm diagonal)
●0.16 MP despite being an ultra-compact head
●LED layout design for even light
●Head cable length is 2.0m

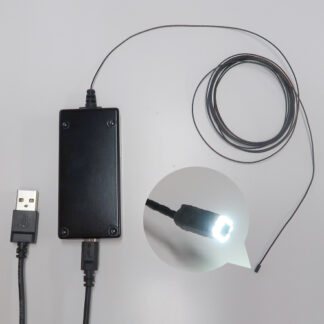

●Easy connection to PC with USB cable

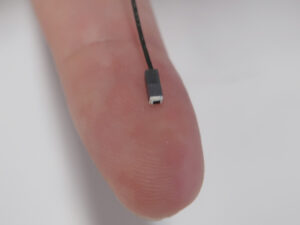

The extremely small head design of 1.8mm square allows access to tight spaces that previous cameras could not reach.

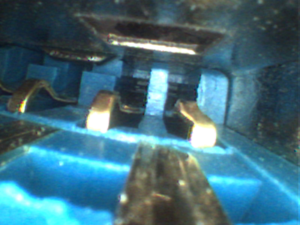

Not only can you see the image with 0.16 MP, but you can also see even the smallest abnormalities and defects!
 |
 |
| Ultra-compact camera head with a 1.8mm square | Clear shooting even at 0.16 MP (USB3 port) |
There are a wide range of functions to adjust the visibility of the image, allowing you to fine-tune it to your preferred viewing angle.
Adjustment items
●Black level
●Contrast
●Gamma
●Exposure time
●Analog/digital gain
●One Push AWB
●Color correction
●Noise filter
●Sharpness
●Image inversion
This unit is a UVC camera, so it can work with a variety of applications.
When setting a wide range of adjustment items, it may not be possible to set all of them depending on the application.

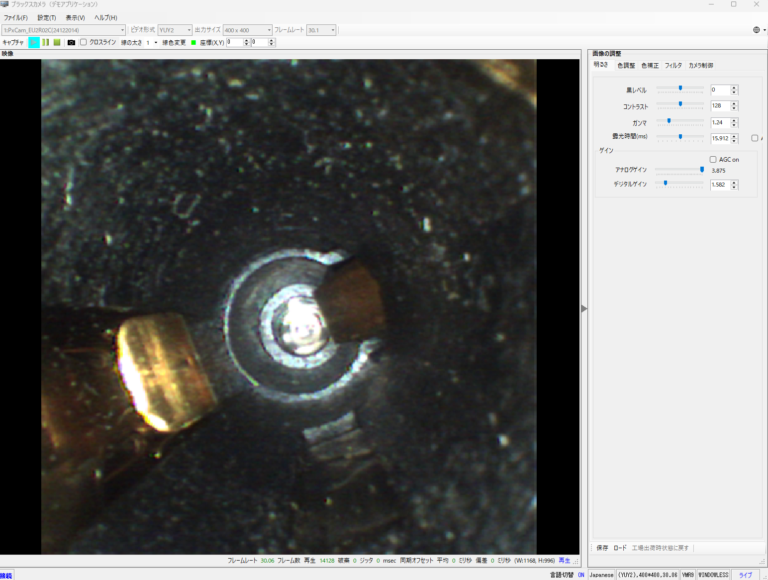

By using the included application, you can have the camera memorize the settings and save still images.
| Camera head size | 1.8㎜×1.8㎜×6.25㎜ |
|---|---|
| Cable length | 2.0m |
| Resolution | 0.16 MP 400×400（30fps） |
| Sensor | 1/18 inch color OV6946 |
| Pixel | 1.75μm |
| Angle of view (diagonal) | 120° |
| F number | 5.0 |
| Focal length | 0.418㎜ |
| Distortion | ＜11％ |
