4 times higher definition than Full HD
Images equivalent to high-end microscopes at reasonable price!

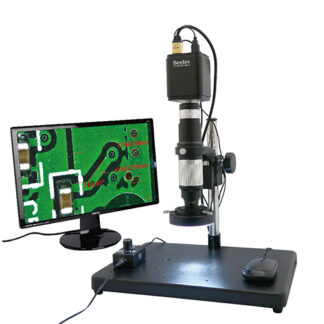

• 4K Microscope
• Equipped with high-resolution 4K lens
• Equipped with a multi-function 4K camera
• In addition, digital zoom up to 10x
Magnification: 26x~260x (* Magnification is a calculated value converted to a 17 inch monitor)
* The stand can be changed to a small stand.
Descriptive power of high-resolution 4K lens
Comparing the white and black brightness profiles. (Red circle on glass scale)
Conventional lens
![](https://www.shodensha.com.vn/wp-content/uploads/2023/05/lens-old-300.png)
![](https://www.shodensha.com.vn/wp-content/uploads/2023/05/wave-old-1.png)
The blurred area around the border between black and white is wide, and the rise of the brightness profile is gentle.
|
High resolution 4K lens
![](https://www.shodensha.com.vn/wp-content/uploads/2023/05/lens-4k-300-1.png)
![](https://www.shodensha.com.vn/wp-content/uploads/2023/05/wave-4k-1.png)
The clear area around the black and white boundary is wide, and the brightness profile rises sharply.
|
![](https://www.shodensha.com.vn/wp-content/uploads/2023/05/yajirusi.jpg)
That’s why
High-definition video can be achieved!
Magnification/Field of View
![](https://www.shodensha.com.vn/wp-content/uploads/2023/05/4k-image-min-r01.jpg)
Minimum magnification 25x (field of view range 16.0mm x 9.0mm)
|
![](https://www.shodensha.com.vn/wp-content/uploads/2023/05/4k-image-max-r01.jpg)
Maximum magnification 250x (field of view range 1.6mmx0.9mm)
|
Display line at will
![](https://www.shodensha.com.vn/wp-content/uploads/2023/05/4K860PT-gridline.jpg)
It is possible to display lines of 10 vertical and 10 horizontal lines at will.
Line color can be changed.
Wide range of measurement functions
![](https://www.shodensha.com.vn/wp-content/uploads/2023/05/4K860PT-callibration-1-1.jpg)
Calibration and measurement can be performed without a PC.
<Measurement items>
|
|
・Angle
・4-point angle
・Perpendicular line with 3 points specified
・Two-point area measurement (vertical, horizontal, perimeter, area) |
・Oval area measurement (vertical, horizontal, perimeter, area)
・Two-point circle measurement (diameter, perimeter, area)
・Distance between two circles
Etc |
High frame rate 50fps
Main features
・HDMI connection
・Equipped with a 10x optical zoom lens for a total magnification of 26x to 260x
・Zoom lens with latch function that locks each scale (suitable for measurement because it eliminates operator error)
・Can be converted to a small stand
Convenient option
Glass scale
GS-4SQ
Used for calibrating the microscope.
Glass scale with 4 different pitches: 20μm/100μm/500μm/1mm
|
![](https://www.shodensha.com.vn/wp-content/uploads/2023/05/gs-4sq.jpg) |
XY Table
TK100
Convenient for positioning
Compatible with all microscope stands
|
![](https://www.shodensha.com.vn/wp-content/uploads/2023/05/tk100-1-1-500x500-1.jpg) |
