XY table with digital micrometer TD100-25MX

●Easy measurement in XY direction

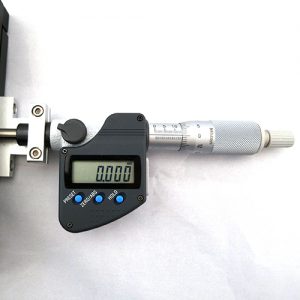

●Detailed work is possible because the stage is moved in the XY direction using a digital micrometer.
●The stage can be moved in the direction of rotation

Product Inquiry phone028-3911-2006

Specification

General Specification

Model Number
TD100-25MX
Stage
Stage size 150X150mm
Travel Distance
25x25mm
Size of Glass plate and observation plate
φ100mm
The accuracy of the digital micrometer
0.01mm

Features

【Glass plate for transillumination light comes as standard equipment】

デジタルマイクロメータ付きXYテーブル TD100

【Stage size and travel distance】

デジタルマイクロメータ付きXYテーブル TD100
・Stage dimension : 150X150mm
・XY Travel Distance : 25X25mm
・with rotated table
・Size of Glass plate and observation plate φ100mm

【How to attach XY table】

デジタルマイクロメータ付きXYテーブル TD100
Please remove the disk of the microscope and microscope base part and fit the XY table in that part (φ95mm)
Attachable to small stand of microscope and stereo microscope.

デジタルマイクロメータ付きXYテーブル TD100
Attachable to small stand of digital microscope.
