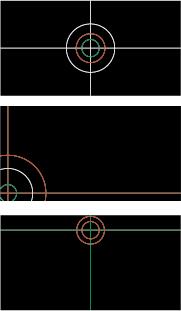

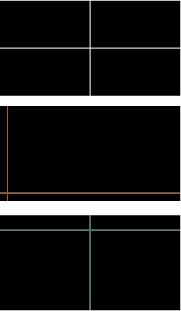

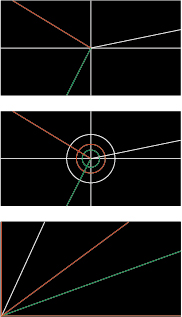

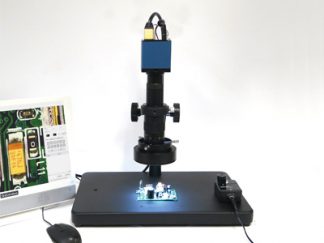

Measurement function, arbitrary cross line generation function, concentric circle generation function, angle line generation function have been added to the camera of Full HD microscope which can be observed with high quality images of full high vision (Full HD).

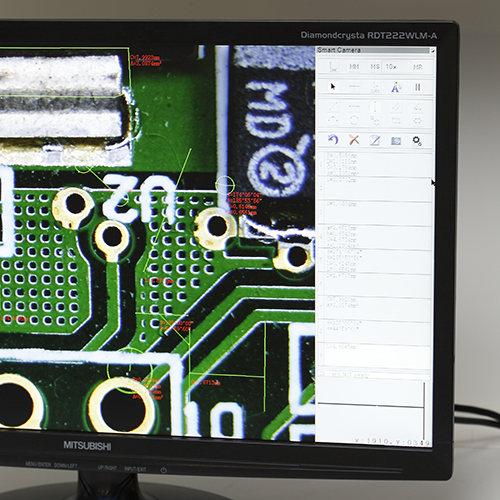

No PC Required! Available to Measure on the monitor. The Screen of measurement result can be saved in USB flash.
- Measurement Function
- HDR（High Dynamic Range）Function
- Thumbnail display function
- Total magnification of 30 to 180 times enabled by an optical 6x zoom lens.
- A zoom lens with latch function to lock each memory. (It is suitable to reduce error of measurement by the operator.)
- A 0.5x auxiliary lens is offered (optional).
- Working Distance : 90mm
- Resolution：1920×1028 FULL HD (1080p）
- No display delay（60fps）
- Images can be saved with Built-in USB Flash slot（Image saved in BMP format）
- HDMI cable comes as standard equipment
- ※We recommend a PC monitor with an HDMI terminal, industrial monitor, etc.
（TV monitors are compatible but sometimes may not be shown.)
Demonstration products are available. For further information, please contact our technical support division.●Relate to Monitor connect with HD Microscope→Check detail information here
