Instant slow motion observation is what you want to observe.
You may use the trigger to capture anything you desire.
●Improve the usability of high-speed cameras! Two software as standard equipment!
●High-speed camera at an extremely low price
●800 fps (fps) at 640 x 480 (VGA) effective pixels,
Also, at 640 x 360 resolution, the maximum speed is 1000 fps (fps).
If color isn’t essential to you, go with the Color Camera option.
If color is not critical but more light is required, a monochrome camera should be used.
Make your high-speed camera more convenient! With 2 standard software
Instantly see what you want to see in slow motion!
The phenomenon of high-speed operation can be reviewed at the time of recording without any hassle
It’s difficult to see what you want in slow motion straight away if you’ve used a high-speed camera before.
You can’t view something in slow motion without having to “record, play the file,
and find what you want to see.”
You can witness phenomena and high-speed movement beyond slow motion if you set the camera to REAL Slow.
Still photographs and short videos can also be saved.
Accurately record elusive fast events!
From the recorder,
the software can check and record the time before and after receiving the Trigger signal!
●Images can be recorded before and after the trigger signal.
●You can also disable trigger input and continuous recording.
※Continuous recording is not feasible since copying video from memory to HDD or SDD takes time.
Consider a long-term video recorder if you want to capture the next recording continually (optional software).
These two software are included as standard, and the high-speed camera comes at a very low price!
Operating environment
| OS Support |
Windows 10 Pro 64bit (32bit, Home cannot be used) |
| CPU |
Intel core i5, i7 6th generation or higher
(however, up to 2.3GHz or higher) |
| RAM |
16GB or more |
Recording time based on resolution and number of images※
※Time is only relative. Varies depending on the program running on the computer

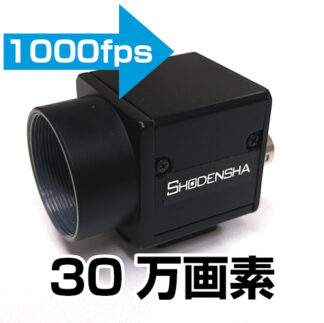

Ultra-compact high-speed camera!
 |
High speed camera
Super compact size 42.6x35mm!
It is suitable for usage in confined spaces. |
3 ways of fixing
 |
Standard product with 4 holes for M2x3.
You can use this hole to fix the camera.
Support screw size is 4-M2 |
 |
In addition, the standard product has three M3x3 holes.
You can also use this hole for fixing.
Support screw size is 3-M3 |
 |
With tripod adapter
We also support holes for tripods.
Support screw size is 1/4-20UNC |
| |
|
Standard devices
● High speed camera
● USB cable (2m)
● REAL Slow motion detection software
● Speed Capture Recording Software
● Activation cable
Camera specifications
| Camera type |
Color / monochrome |
| Image sensor |
1/4″ CMOS 0.3MP
ON Semiconductor
PYTHON300
|
| Pixel size（μm） |
4.8 × 4.8 |
| Maximum resolution |
640×480（VGA） |
| Frame rate |
at 640×480 800fps
at 640×380 1000fps |
| Dynamic range |
59 dB |
| Ratio S/N |
39.9 dB |
| Shutter speed |
Up to 1/20,000（5μ second） |
| Power supply method |
USB bus power |
| Weight (only camera body) |
About 63g |
| Maximum power consumption |
at DC5V 3.3W |
| Size |
29x29x42.6mm (excluding overhang) |
| Mount |
C mount |
| Connect |
USB3.0 |
| Ambient temperature (ambient temperature) |
During operation 0 ~ 50° During storage -30 ~ 70° |
| certification |
CE, FCC, RoHS, KC |
Experimental video
CHU30-B-RS 800fps Shutter speed 1/20000
Capturing belts moving at 30 m/min with 30 x 40 field of view
CHU30-B-RS 800fps Shutter speed 1/20000 Capture a moving belt at 200m/min with 30×40 field of view
Video recorded with CHU30-C-RS (igniter)
Video recorded with CHU30-C-RS (drill)
Video recorded with CHU30-C-RS (sewing machine movement)
Video recorded with the CHU30-C-RS (pulley movement in the plastic model)
Video recorded with CHU30-B-RS (parts dropped)
Sensor spectral sensitivity characteristics
Introducing optional software
|
Long-time recorder
SpeedWatcher
It’s software that can be developed and tested before and after the trigger is entered, similar to a drive recorder.
Record and save directly to HDD or SSD instead of memory.
※ Accept to manufacture specialized computers on request.
Please feel free to contact us.
|
 |
| Shooting speed |
Resolution |
Recording time
at HDD/SSD
1TB |
Recording time
at HDD/SSD
4TB |
Recording time
at HDD/SSD
8TB |
30fps
（frame／second） |
640×480 |
about 30 hours |
about 132 hours |
about 230 hours |
100fps
（frame／second） |
640×480 |
about 9 hours |
about 35 hours |
about 132 hours |
400fps
（frame／second） |
640×480 |
about 130 min |
about 9 hours |
about 36 hours |
800fps
（frame／second） |
640×480 |
about 60 min |
about 4 hours |
about 9 hours |
Introducing useful options
|
Simple lighting
for High speed camera
SCH-SNP
Always-on type.
Simple lighting for low-cost high-speed cameras that don’t need to be synchronized with the camera.
|
 |
| |
|
|
Long-time record (software, laptop, external SSD)
●A set of laptops equipped with FRONTIER i7, SpeedWatcher long-time recording software, and an external SSD (500GB).
Feature-verified actual PC type with SpeedWatcher software
OS ：Windows10 Pro
CPU ： i7-9750H(2.6GHz)
Ram ：8GB
SSD ：240GB
USB ：USB2.0 x1 USB3.0 x1 USB3.1 Gen2 x1
(Excluding Excel, etc.)
※PC specifications and prices are subject to change without notice, so please contact us for details.
※External SSD can be changed to 1TB (fees apply).
※CHU30-C-RS / CHU30-B-RS high-speed camera sold separately.
|
 |
