Recording software for USB cameras

Image synchronization between two USB cameras is simple!

●Two USB cameras with a fully synchronized recording system.

●You can look at the same phenomenon from two perspectives, and you can see both the complete image and a portion of the magnified image.

If you require color, you should purchase a color camera.
Choose a monochrome camera if color isn’t crucial and you need light.

If you require a high-resolution camera, please contact us.

Product Inquiry 028-3911-2006

The whole sync system feature is fantastic.

●Example of fully synchronized USB camera shooting system

System example
Two CS130-C USB cameras (1.3 Megapixel, color)
H0514-MP2 fixed focal length lens (low distortion type) 2pcs
Fully synchronized recording kit

※A desktop (discussion) will be prepared in accordance with the camera operation requirements.

If you require a high-resolution camera, please contact us.

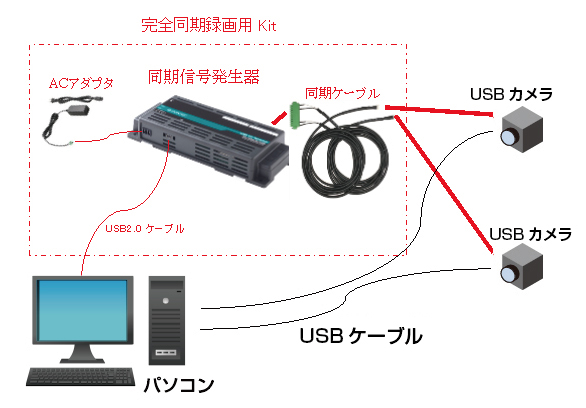

●Image of synchronous system diagram

To record and sync completely, the camera must be moved at the same moment.
A synchronous signal generator is therefore necessary.

What is fully synchronous recording?

When recording with two cameras linked,
the frame may alter or one of the cameras’ frames may be skipped.

You can record with two totally synchronized frames without frame shifting with this synchronization mechanism.

For example, when capturing the activity of a tool…

You can shoot the subject from two directions to check what is going on without any deviation.

Ideal for observing and recording from two locations

If you write consistently on some low-cost SSDs, even at the manufacturer’s advertised write speed, the write speed will diminish as shown in the image.

We will recommend SSDs.

・SAMSUNG 960PRO（512GB）
・SAMSUNG 970PRO（512GB、1TB）
・SAMSUNG 980PRO（1TB、2TB）

Specification

General Specification
